SURT1000XLIM Technical Specifications

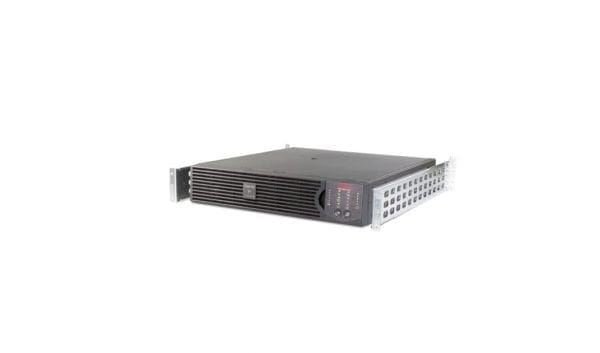

APC Smart-UPS RT 1000 Marine UPS 700W 1000VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS RT
Model :1000
Edition :Marine
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
Voltage Provided :AC 220/230/240 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :700 watt
Power Capacity (VA) :1000 volt ampere per kilogram
Voltage Required :AC 220/230/240 volt
Input Voltage Range :AC 180 – 280 V
Input Voltage Range (Adjustable) :AC 100 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Power IEC 60320 C14
Input Connector Qty :1
Output Connector Qty :6
Surge Suppression :Yes
Surge Energy Rating :420 joules
Power Device Features :Built-in bypass switch
Power Output Connectors Details
Power Output Connectors Details :6 x power IEC 60320 C13
Battery
Run Time (Up To) :14 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :14 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :2
Compliant Standards :EN 60950, EN 61000-3-2, EN 50091-1, RoHS Exemption 7b, UL 1449, REACH, EN55022 Class A, RoHS, EN 50091-2
Dimensions & Weight
Width :3.3 inch
Depth :19 inch
Height :17 inch
Weight :50.71 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.8 inch
Shipping Depth :23.4 inch
Shipping Height :11.3 inch
Shipping Weight :61.29 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
