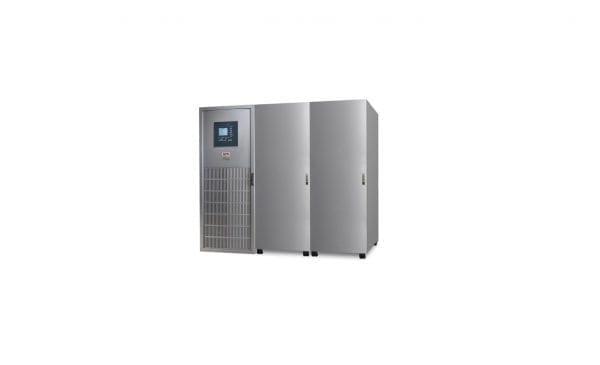

SUG550A90UL Technical Specifications
G5K 50 kVA 480V ADJ BATT UL924 BACKUP 90 MIN
Output
Max Configurable Power (Watts)
45.0kWatts / 50.0kVA
Efficiency at Full Load
93.3 %
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Load Crest Factor
3 : 1
Overload Operation
10 minutes @ 125% and 30 seconds @ 150%
Output Voltage THD
< 1% linear load and < 2.5% nonlinear load
Output Voltage Tolerance
+/- 1% static and +/- 2 % at 100% load step
Bypass
Internal Bypass (Automatic and Manual), Optional External Bypass
Input
Input frequency
45 – 65 Hz, 60 Hz +/- 5 Hz
Input voltage range for main operations
408 – 552 (480)V
Efficiency at Full Load
93.3 %
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
3-pole breaker
Maximum Short Circuit Withstand (Icw)
20.0kAmps
Input Power Factor at Full Load
1.0
Batteries & Runtime
Battery type
VRLA
Communications & Management
Control panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
3
Physical
Maximum Height
75.0inches (1905MM, 190.5CM)
Maximum Width
125.3inches (3183MM, 318.3CM)
Maximum Depth
32.0inches (813MM, 81.3CM)
Net Weight
4650.0lbs. (2113.64KG)
Shipping weight
4720.0lbs. (2145.45KG)
Shipping Height
76.0inches (1930MM, 193.0CM)
Shipping Width
133.0inches (3378MM, 337.8CM)
Shipping Depth
33.0inches (838MM, 83.8CM)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
5 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-25 – 40 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-30000ft (0-9000meters)
Audible noise at 1 meter from surface of unit
65.0dBA
Online thermal dissipation
11021.0BTU/hr
