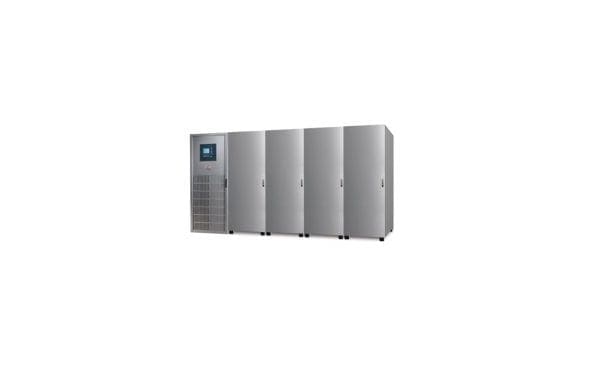

SUG5100S90UL Technical Specifications
G5K 100 KVA 480V UPS with SA Batt UL924 BACKUP 90 Min
Output
Max Configurable Power (Watts)
90.0kWatts / 100.0kVA
Efficiency at Full Load
92.9 %
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
600
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Maximum Output Current
190
Output Voltage THD
< 1% linear load and < 2.5% nonlinear load
Output Voltage Tolerance
+/- 1% static and +/- 2 % at 100% load step
Bypass
Internal Bypass (Automatic and Manual), Optional External Bypass
Input
Input frequency
45 – 65 Hz, 60 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Input voltage range for main operations
408 – 552 (480)V
Input voltage adjustable range for mains operation
408 – 552 (480V)V
Efficiency at Full Load
92.9 %
Input Total Harmonic Distortion
Less than 3% for full load
Type of Input Protection Required
3-pole breaker
Maximum Short Circuit Withstand (Icw)
30.0kAmps
Input Power Factor at Full Load
1.0
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Communications & Management
Control panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
3
Physical
Maximum Height
75.0inches (1905MM, 190.5CM)
Maximum Width
222.3inches (5646MM, 564.6CM)
Maximum Depth
32.0inches (813MM, 81.3CM)
Net Weight
19544.0lbs. (8883.64KG)
Shipping weight
19644.0lbs. (8929.09KG)
Shipping Height
76.0inches (1930MM, 193.0CM)
Shipping Width
223.95inches (5688MM, 568.8CM)
Shipping Depth
33.0inches (838MM, 83.8CM)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
5 – 90 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-20 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-30000ft (0-9000meters)
Audible noise at 1 meter from surface of unit
63.0dBA
Online thermal dissipation
23886.0BTU/hr
Protection Class
IP 20
