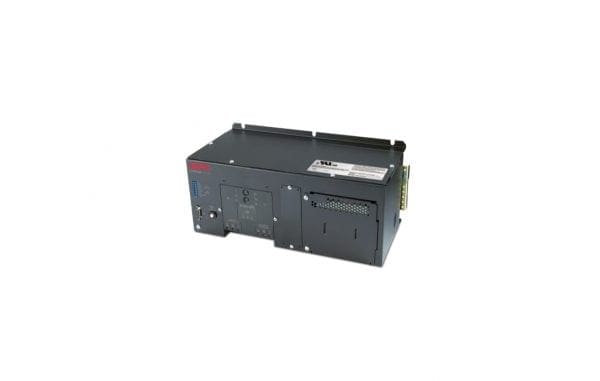

SUA500PDR-H Technical Specifications
APC DIN Rail – Panel Mount UPS with High Temp Battery 500VA 120V
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232
Expansion Slots
Expansion Slots :SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x RS-232 – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Signal cable
Power Device
Form Factor :DIN rail mountable
Voltage Provided :AC 120 volt
Frequency Provided :57 – 63 hertz
Power Provided :325 watt
Power Capacity (VA) :500 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :LED indicators, Remote Emergency Power Off (REPO), Audible alarm
Battery
Recharge Time :2.5 hour(s)
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color Category :Black
Compliant Standards :UL 1449
Dimensions & Weight
Width :14.3 inch
Depth :6.7 inch
Height :5.8 inch
Weight :25.31 lbs
Dimensions & Weight (Shipping)
Shipping Width :18.9 inch
Shipping Depth :11.7 inch
Shipping Height :11.7 inch
Shipping Weight :29.32 lbs
