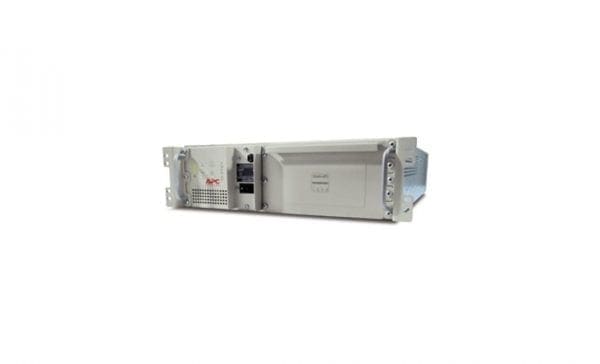

SU2000R3X155 Technical Specifications
APC Ruggedized Smart UPS 2000VA, 120V, RM 3U
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS RM
Model :2000VA Ruggedized Version
Country Kits :United States, Canada
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable 8 ft
Software
Type :APC PowerChute Smart-UPS Bundle
Power Device
Form Factor :Rack-mountable
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1.4 kilograms per millimetere
Power Capacity (VA) :2000 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 92 – 147 V
Input Voltage Range (Adjustable) :AC 86 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-30
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Surge Response Time :0 nanosecond
Surge Energy Rating :480 joules
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15
Battery
Run Time (Up To) :9.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :9.8 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Beige
Color Category :Beige
Height (Rack Units) :3
Compliant Standards :MIL-STD 167B, MIL-STD 901D, MIL-STD 1399
Features :Emergency power off, Audible alarm
Dimensions & Weight
Width :17 inch
Depth :26.5 inch
Height :5 inch
Weight :140.21 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
