STEX4650 Technical Specifications

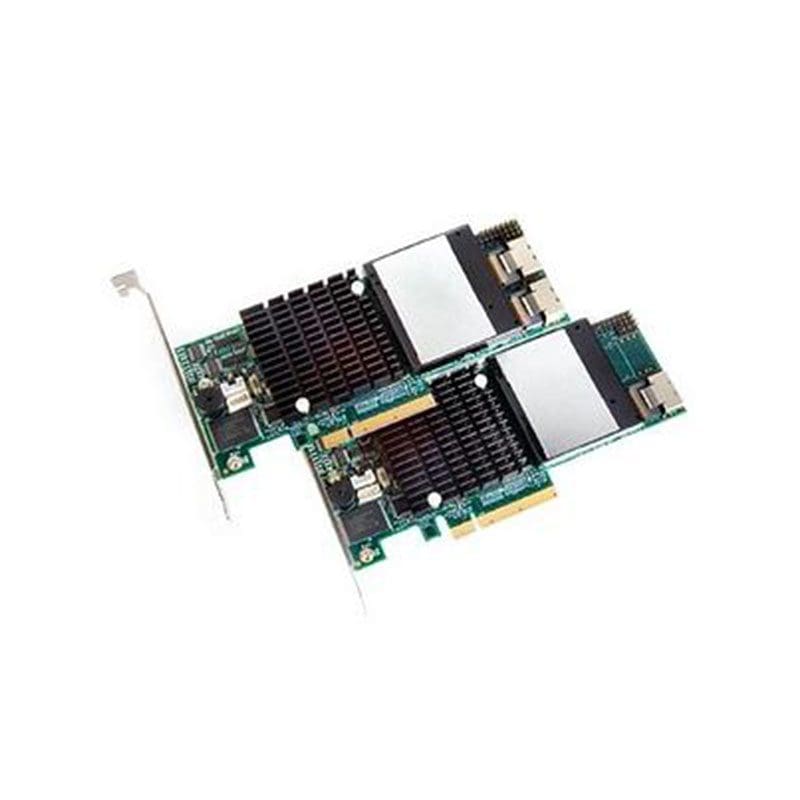

Promise SuperTrak 4-Channel SATA 3.0Gbps / SAS RAID Storage Controller
Manufacturer Part Number STEX4650
Brand Name Promise
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
Controller Type Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
1E
5
6
10
50
60
Interfaces/Ports
Total Number of SAS Ports 1
Number of SAS Ports (Internal) 1
SAS Connector Details 1 SFF-8087
Physical Characteristics
Height 2.7″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification RoHS
