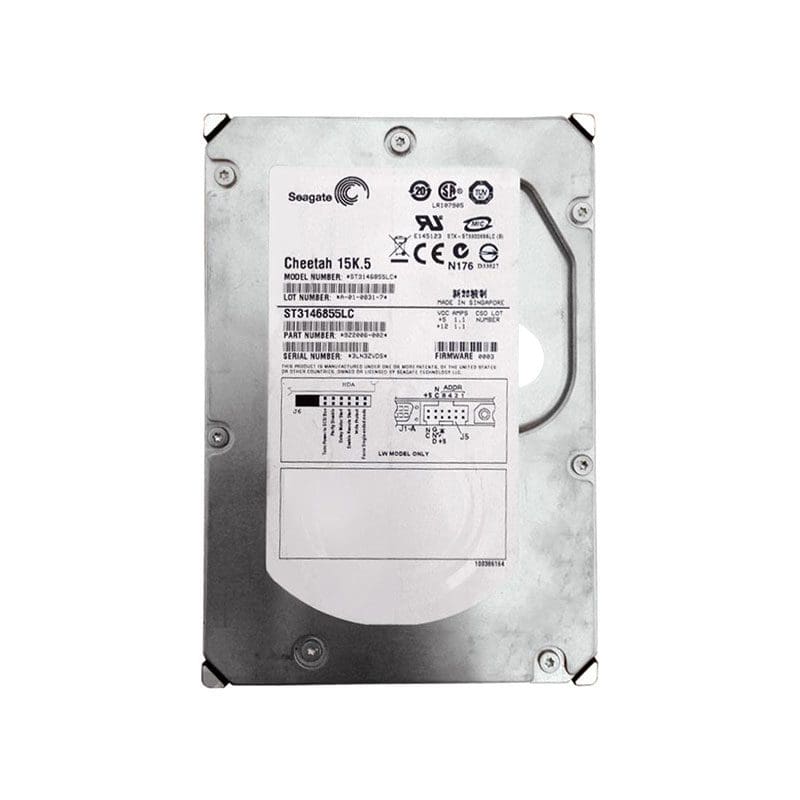

ST3146855LC Technical Specification
Seagate Cheetah 146GB 15K RPM 16MB Buffer 3.5 Inches Form Factor Ultra320 80 Pin SCSI Hard Drive
SPECIFICATION
Form Factor 3.5
Capacity 146.8 GB
Interface Type Ultra320 SCSI
Connector 80 pin HD D-SUB
SCSI Signaling Type Low Voltage Differential LVD
Buffer Size 16 MB
PERFORMANCE
Drive Transfer Rate 320 MBPS external / 150 MBPS internal
Seek Time 3.5 MS Average / 6.7 MS MAX
Track-to-Track Seek Time 0.2 MS
Average Latency 2 MS
Spindle Speed 15000 RPM
EXPANSION / CONNECTIVITY
Interfaces 1 x Ultra320 SCSI – 80 pin HD D-SUB HD-80
Compatible Bays 1 x internal – 3.5 Inches
