ST1000VN002 Technical Specifications

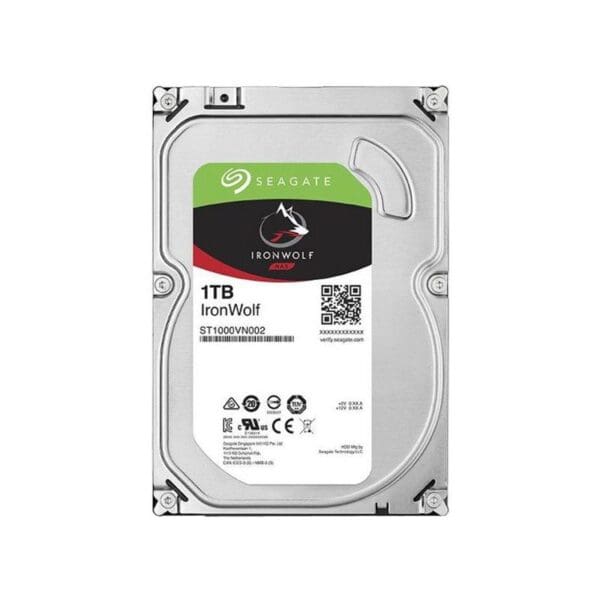

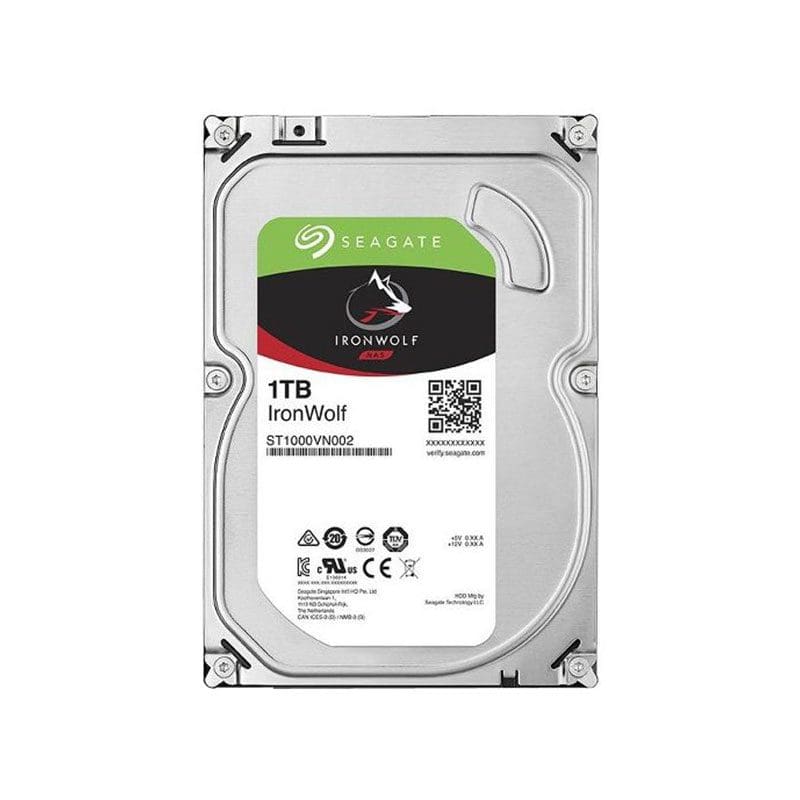

Seagate 1TB IRONWOLF SATA 5900 RPM 64MB
Manufacturer: Seagate
Seagate IronWolf NAS
Capacity: 1TB / 1000GBB
Interface: SATA 6GB/s
FEATURES AND PERFORMANCE
Number of Drive Bays Supported: 1 to 8
Multi User Technolgy (TB/yr): 180
Rotational Vibration (RV) Sensors: No
Dual-Plane Balance: Yes
Error Recovery Control: Yes
Maximum Sustained Data Transfer Rate OD (MB/s 180
Spindle Speed: 5900
Cache (MB): 64
RELIABILTY / DATA INTEGRITY
Load / Unload Cycles: 600,000
Nonrecoverable Read Errors per Bits Read, Max 1 per 10E14
Power-On Hours (per year): 8760
Workload Rate Limit (WRL) (TB/year): 180
Mean Time Between Failures (MTBF) (hours) 1M
POWER MANAGEMENT
Startup Current, Typical (12V, A) 1.2
Average Operating Power (W): 3.6
Idle Averag (W): 2.5
Voltage Tolerance (5V): ±5%
Voltage Tolerance (12V): ±10%
ENVIRONMENTAL
Operating (ambient, min) 5
Operatin (drive case, max) 70
Nonoperating (ambient, min) -40
Nonoperating (ambient, max) 70
Halogen Free: Yes
