Refurbished ST10000NM001G Technical Specifications

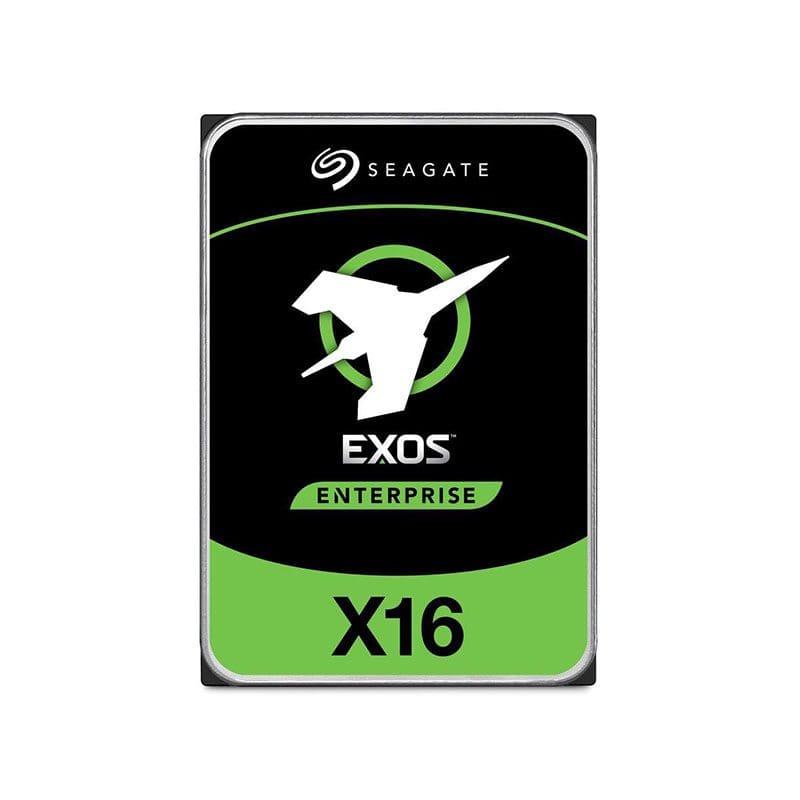

Seagate Exos X16 512e/4Kn Standard Model 10TB 7200RPM 256MB Cache SATA 6Gb/s 3.5″ Internal Hard Drive
SPECIFICATIONS
Brand Seagate
Series Exos X16
Model ST10000NM001G
Interface SATA 6Gb/s
Capacity 16 TB
Form Factor 3.5″
Reliability/Data Integrity
Mean Time Between Failures (MTBF, Hours) 2,500,000
Reliability Rating @ Full 24×7 Operation (AFR) 0.35%
Non-Recoverable Read Errors per Bits Read 1 Sector per 10E15
Power-On Hours per Year (24×7) 8,760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4,096
Performance
Spindle Speed (RPM) 7,200 RPM
Interface Access Speed (Gb/s) 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s, MiB/s) 245, 233
Random Read/Write 4K QD16 WCD (IOPS) 170/440
Average Latency (ms) 4.16
Interface Ports Single
Rotation Vibration @ 20-1500 Hz (rad/sec²) 12.5
Power Consumption
Idle A (W) Average 5 W
Max Operating, Random Read/Write 4K/16Q (W) 9.5, 6.0
Power Supply Requirements +12 V and 5 V
General
Operating Temperature Range 5°C – 60°C
Vibration, Non-Operating: 2 to 500 Hz (Grms) 2.27
