ST10000NM0016 Technical Specifications

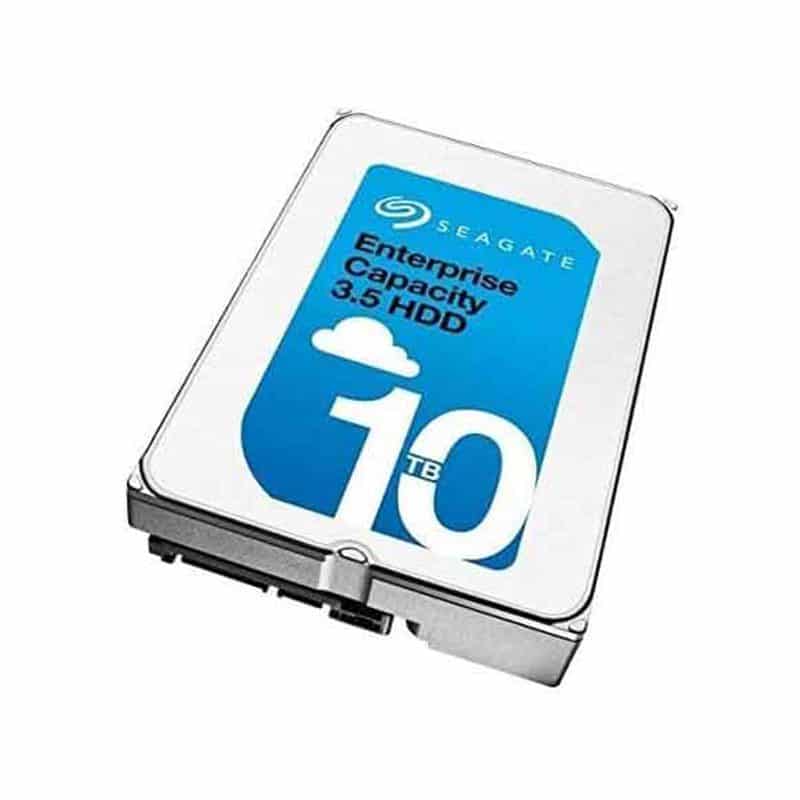

Seagate Enterprise Capacity V.6 10TB 7.2K RPM SATA-6GBPS 256MB Buffer 512E Helium Filled 3.5inch Hard Disk Drive
GENERAL INFORMATION :
Manufacturer : Seagate
Manufacturer Model : ST10000NM0016
Product Line : Enterprise Capacity 3.5 HDD (Helium)
Product Name : Enterprise Capacity V.6 10TB Hard Drive.
BEST-FIT APPLICATIONS :
Hyperscale Applications/Cloud Data Centers
Massive Scale-Out Data Centers
High-Capacity Density Raid Storage
Mainstream Enterprise External Storage Arrays
Distributed File Systems, Including Hadoop And Ceph
Enterprise Backup And Restore – D2D, Virtual Tape
Centralised Surveillance
KEY FEATURES :
Storage Capacity : 10 TB
Enclosure : Internal
Interface : SATA 6GBPS
Speed 6Gb/s
Bytes Per Sector : 512e
Drive Dimensions : 3.5 Inch
Number Of Heads : 14
Number Of Disks : 7
MTBF : 2.5 Million Hours
Multi-Step Forged Helium Sealed-Drive Design : Yes
Superior Wide-Weld Hermetically Sealed-Drive Enclosure : Yes
Digital Sensors For Humidity, Helium Pressure And Temperature : Yes
Superparity : Yes
Low Halogen : Yes
Powerchoice™ Idle Power Technology : Yes
Powerchoice™ Power/Performance Technology : Yes
Raid Rebuild : Yes
Hot-Plug Support : Yes
Organic Solderability Preservative : Yes
DRIVE PERFORMANCE :
Internal Data Transfer Rate (Max) : 2695 MBPS
I/O Data-Transfer Rate (Max) : 600 MBPS
Sustained Data Transfer Rate OD (Max): 254, 243 MBPS
Average Latency : 4.16 MS
Interface Ports : Single
Buffer : 256 MB
Rotational Speed : 7200 RPM
