SSG-350M-SH-TAA Technical Specifications

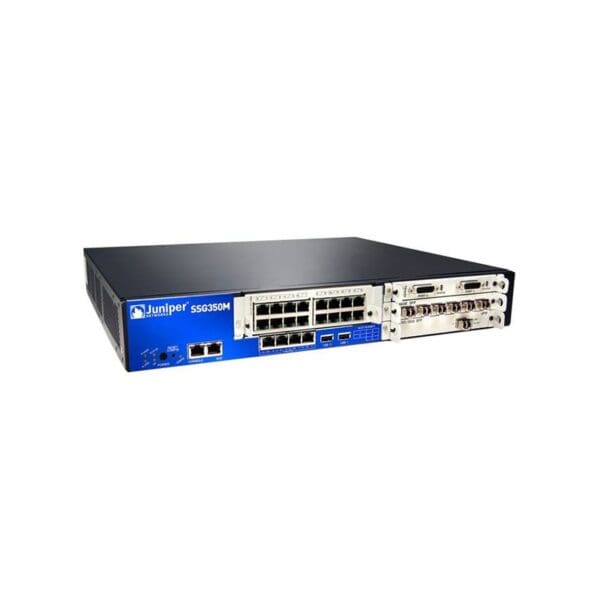

Juniper Networks Secure Services Gateway SSG 350M security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Secure Services Gateway
Model :SSG 350M
Packaged Quantity :1
RAM
Installed Size :1 GB
Max Supported Size :1 GB
Optical Storage
Type :None
Performance
Performance :Firewall throughput (IMIX): 500 Mbps, 3DES+SHA1 VPN performance (large packets): 225 Mbps, Firewall throughput (large packets): 500+ Mbps
Capacity
Capacity :Connection / user qty: unlimited, Security zones: 40, VPN tunnel interfaces: 200, Concurrent VPN tunnels: 350, Security policies: 750, Authenticated users (internal database): 1500, Concurrent sessions: 48000, Static routes: 10000
Networking
Type :Security appliance
Form Factor :External
Connectivity Technology :Wired
Data Link Protocol :PPP, Ethernet, FRF.15, Fast Ethernet, MLPPP, HDLC, FRF.16, Gigabit Ethernet, Frame Relay
Routing Protocol :Static IP routing, RIP-2, PIM-SSM, BGP, OSPF, IGMP, ECMP, RIP-1, IGMPv2, PIM-SM
Network / Transport Protocol :SMTP, L2TP, IMAP, POP3, PPPoE, IPSec
Remote Management Protocol :SNMP 2, HTTP, Telnet, HTTPS
Features :Modular design, RADIUS support, Firewall protection, DDos attack prevention, DHCP support, URL filtering, Hardware encryption, 168-bit encryption, High Availability, VLAN support, LDAP support, 256-bit encryption, VPN support, 56-bit encryption, Quality of Service (QoS), NAT support, DoS attack prevention, PAT support, DiffServ support, Routing, Syslog support
Compliant Standards :X.509, IEEE 802.1x
IP Telephony
VoIP :Yes
VoIP Protocols :SCCP, MGCP, H.323, SIP
Expansion Slots
Expansion Slots :5 (total) / 5 (free) x expansion slot
Interface Provided
Interfaces :1 x management, 1 x management – RJ-45, 4 x 1000Base-TX, 2 x USB
OS Provided
Type :ScreenOS
Power Device
Type :Internal power supply
Power Provided :300 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :1.5
Encryption Algorithm :AES, PKI, IKE, Triple DES, SHA-1, MD5, DES, RSA
Authentication Method :SecurID, X.509 certificates, RADIUS
Compliant Standards :VCCI Class A ITE, cUL, C-Tick, BSMI, UL, FCC Class B certified, CB, CSA
Dimensions & Weight
Width :17.5 inch
Depth :15.1 inch
Height :2.6 inch
Weight :24.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :122 degree Fahrenheit
Humidity Range Operating :10 – 90%
