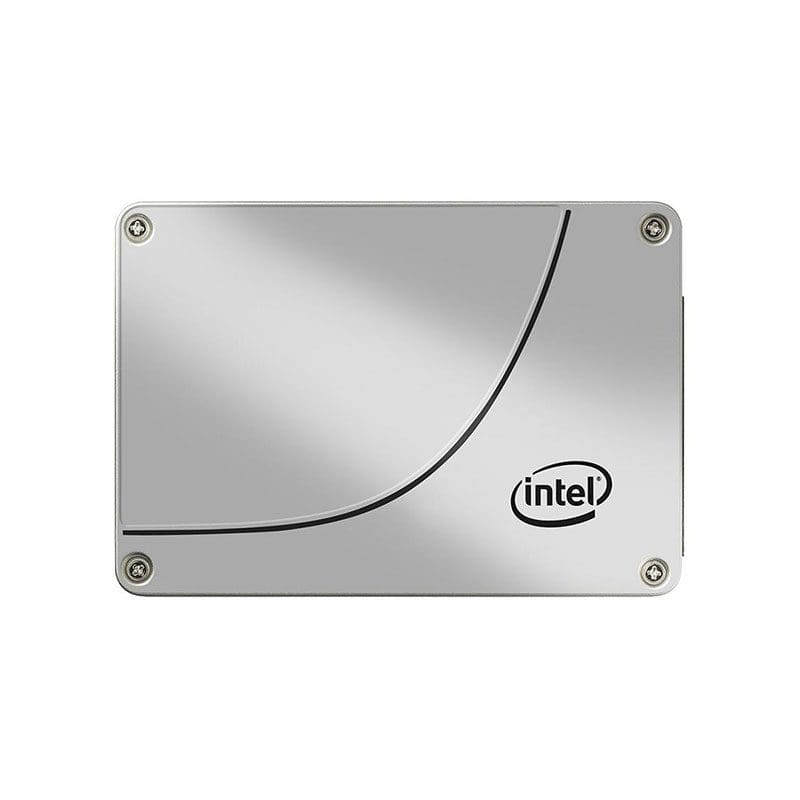

SSDSC2BB480G701 Technical Specifications
Intel DC S3520 Series 480GB SATA 6GBPS 3D1 MLC 2.5 Inch Solid State Drive
GENERAL INFORMATION :
MANUFACTURER : INTEL CORPORATION
MANUFACTURER PART : SSDSC2BB480G701
PRODUCT SERIES : DC S3520
PRODUCT NAME : DC S3520 SERIES MLC SOLID STATE DRIVE (SSD)
TECHNICAL INFORMATION :
STORAGE CAPACITY : 480GB
INTERFACE TYPE : SATA 6GBPS
SPEED 6Gb/s
FORM FACTOR : 2.5 INCH 7MM
LITHOGRAPHY : 16NM 3D NAND
NAND FLASH MEMORY TYPE : MLC
SHOCK : 1000 G/0.5 MSEC
MTBF : 2000000 HOURS
PERFORMANCE :
SEQUENTIAL READ : 450 MBPS
SEQUENTIAL WRITE : 380 MBPS
RANDOM READ (100% SPAN) : 65500 IOPS
RANDOM WRITE (100% SPAN) : 16000 IOPS
ADVANCED TECHNOLOGIES :
ENHANCED POWER LOSS DATA PROTECTION : YES
HARDWARE ENCRYPTION : 256 AES
HIGH ENDURANCE TECHNOLOGY (HET) : NO
TEMPERATURE MONITORING AND LOGGING : YES
END-TO-END DATA PROTECTION : YES
