SRX650BSRE6645APAA Technical Specifications

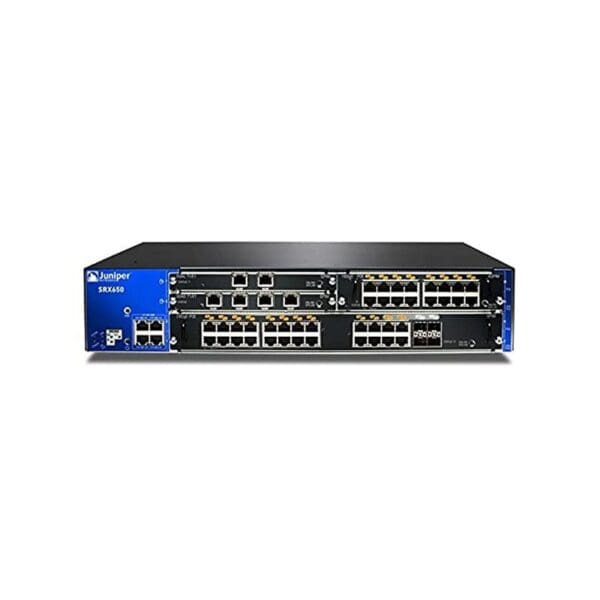

Juniper Networks SRX650 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX650 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Card Reader
Supported Flash Memory Cards :CompactFlash Card
Performance
Performance :Antivirus throughput: 350 Mbps, Firewall throughput (large packets): 7 Gbps, Firewall throughput (IMIX): 2.5 Gbps, Firewall throughput (HTTP): 2 Gbps, IPS throughput: 1 Gbps, Firewall throughput (64-byte packet size): 850000 packets per second, VPN throughput (IPSec): 1.5 Gbps
Capacity
Capacity :RIP instances: 64, OSPF routes: 800000, Static routes: 800000, BGP routes: 800000, IPSec VPN tunnels: 3000, Security zones: 128, Concurrent sessions: 512000, MLFR maximum physical interfaces: 12, MLPPP maximum physical interfaces: 12, Security policies: 8192, BGP instances: 64, OSPF instances: 64, Virtual routers: 60, RIP routes: 800000, Virtual interfaces (VLANs): 3967, Concurrent VPN tunnels: 3000, VPN tunnel interfaces: 512, BGP peers: 256, Maximum number of remote users: 500
Networking
Type :Security appliance
Form Factor :External
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Fast Ethernet, Ethernet
Routing Protocol :IGMPv2, RIP-1, RIPng, OSPFv3, IGMP, RIP-2, ECMP, IGMPv3, PIM-SM, MLD, PIM-SSM, PIM-DM, IS-IS, MPLS, MSDP, BGP, DVMRP, OSPF
Switching Protocol :Frame Relay, Ethernet
Network / Transport Protocol :RSVP, PPPoE, IMAP, DHCP, PPPoA, POP3, SMTP, IPSec, FTP
Remote Management Protocol :HTTP, SSH
Power Over Ethernet (PoE) :PoE+
Features :Anti-spam protection, DHCP server, Intrusion Prevention System (IPS), DDos attack prevention, RADIUS support, Virtual Route Redundancy Protocol (VRRP) support, DoS attack prevention, IPv6 support, Quality of Service (QoS), IGMP snooping, Link Fragmentation and Interleaving (LFI), Rapid Spanning Tree Protocol (RSTP) support, Syslog support, Clustering technology, LLDP support, IPv4 support, NAT support, Multiple Spanning Tree Protocol (MSTP) support, J-Flow, VLAN support, Anti-spyware protection, DHCP relay, PAT support, Weighted Random Early Detection (WRED), Firewall protection, GRE tunneling, DiffServ support, Firmware upgradable, Content filtering, Anti-malware protection, Power over Ethernet (PoE), Stateful Failover, Static routing, IPSec NAT-Traversal (NAT-T)
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at, IEEE 802.1ad, IEEE 802.3ad (LACP), IEEE 802.1D
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x Services and Routing Engine (SRE), 8 (total) / 8 (free) x Gigabit-Backplane Physical Interface Module (GPIM)
Interface Provided
Interfaces :2 x USB – Type A, 4 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :645 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :122 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :SHA-1, 256-bit SHA, MD5, RSA, Triple DES, PKI, DES, DH, IKE, AES
Authentication Method :SecurID, XAUTH authentication, LDAP, X.509 certificates, RADIUS
Compliant Standards :CS-03, EN55022 Class A, FCC Class A certified, CISPR 22 Class A, UL 60950-1, AS/NZS 60950-1, NEBS, CB, ICES Class A, VCCI Class A ITE, DOC, EN300-386, EN 60950-1, EN 300 386
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :24.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
