SRX650BASESRE6645D Technical Specifications

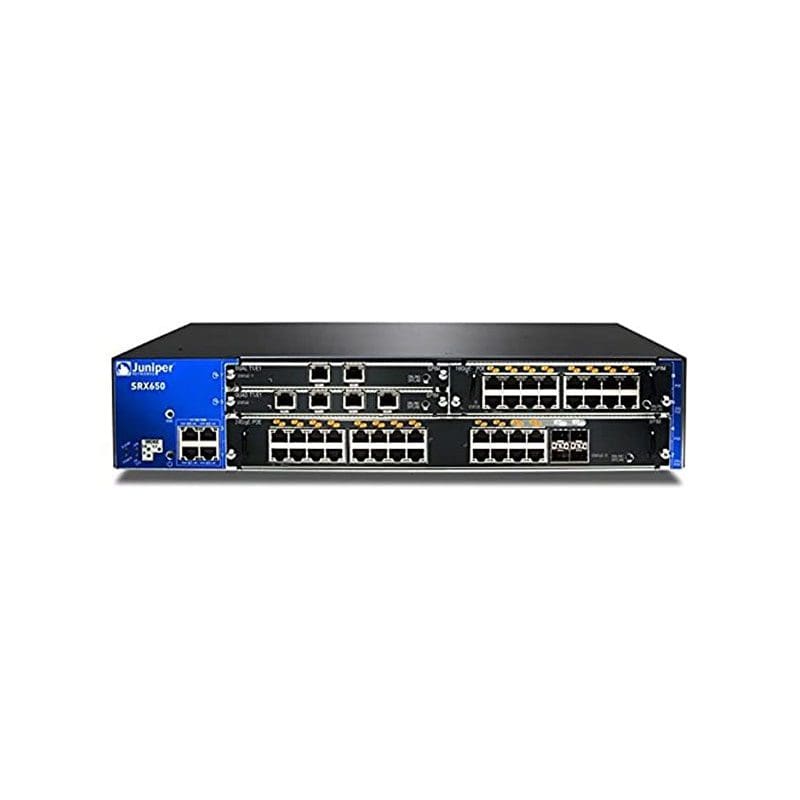

Juniper Networks SRX650 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper
Product Line :Juniper Networks
Model :SRX650 Services Gateway
Packaged Quantity :1
Optical Storage
Type :None
Performance
Performance :IPS throughput: 900 Mbps, 3DES+SHA1 VPN performance (large packets): 1.5 Gbps, Antivirus throughput: 350 Mbps, Firewall throughput (large packets): 7 Gbps, Firewall throughput (IMIX): 2.5 Gbps
Capacity
Capacity :Virtual interfaces (VLANs): 4096, OSPF routes: 800000, IPSec VPN tunnels: 3000, Security policies: 8192, Concurrent sessions: 512000, VPN tunnel interfaces: 512, Security zones: 128, Concurrent VPN tunnels: 3000
Networking
Type :Security appliance
Form Factor :External
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :ECMP, BGP, PIM-SM, OSPF, IGMPv2, RIP-2, RIP-1, IGMPv3, PIM-SSM, IGMP
Switching Protocol :Frame Relay, Ethernet
Network / Transport Protocol :PPPoE, IMAP, POP3, FTP, SMTP, IPSec, DHCP
Power Over Ethernet (PoE) :PoE
Features :DDos attack prevention, Firewall protection, DHCP support, Power over Ethernet (PoE), IP address filtering, MPLS VPN, Content filtering, Intrusion Prevention System (IPS), Quality of Service (QoS), DoS attack prevention, Jumbo Frames support
Compliant Standards :IEEE 802.1x, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ad (LACP)
Expansion Slots
Expansion Slots :8 expansion slot
Interface Provided
Interfaces :1 x management – RJ-45, 4 x 1000Base-T – RJ-45, 2 x USB – Type A
Power Device
Type :Internal power supply
Installed Qty :1
Power Provided :645 watt
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :DES, SHA-1, IKE, PKI, AES, MD5, Triple DES
Authentication Method :RADIUS, Active Directory, LDAP
Compliant Standards :CS-03, ICES Class B, CSA, CTR 21, UL 60950-1, VCCI Class B ITE, DOC, FCC Class B certified, EN 60950-1, EN55022 Class B
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :24.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
