SRX650BASESRE6645AP Technical Specifications

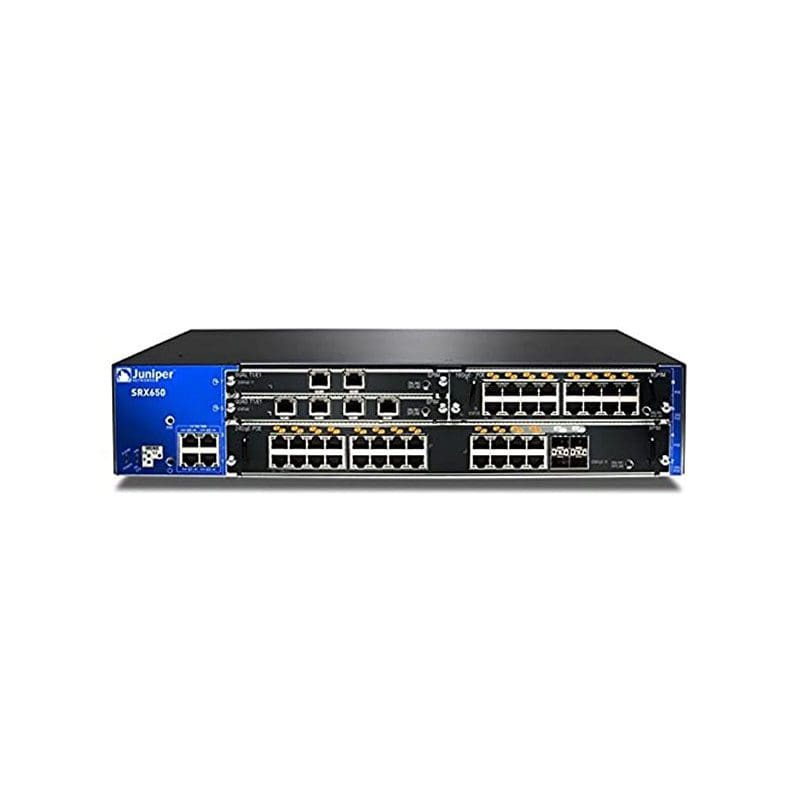

Juniper Networks SRX650 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX650 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Performance
Performance :3DES+SHA1 VPN performance (large packets): 1.5 Gbps, IPS throughput: 900 Mbps, Firewall throughput (large packets): 7 Gbps, Antivirus throughput: 350 Mbps, Firewall throughput (IMIX): 2.5 Gbps
Capacity
Capacity :VPN tunnel interfaces: 512, Concurrent sessions: 512000, Concurrent VPN tunnels: 3000, IPSec VPN tunnels: 3000, Security zones: 128, Virtual interfaces (VLANs): 4096, OSPF routes: 64000, Security policies: 8192
Networking
Type :Security appliance
Form Factor :External
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :BGP, RIP-2, IGMPv2, RIP-1, IGMP, IGMPv3, PIM-SSM, ECMP, OSPF, PIM-SM
Switching Protocol :Frame Relay, Ethernet
Network / Transport Protocol :IPSec, PPPoE, FTP, IMAP, POP3, SMTP, DHCP
Power Over Ethernet (PoE) :PoE
Features :Power over Ethernet (PoE), MPLS VPN, DHCP support, Intrusion Prevention System (IPS), Quality of Service (QoS), IP address filtering, Jumbo Frames support, Firewall protection, Content filtering, DoS attack prevention, DDos attack prevention
Compliant Standards :IEEE 802.3af, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3at
Expansion Slots
Expansion Slots :8 (total) / 7 (free) x expansion slot
Interface Provided
Interfaces :1 x management – RJ-45, 2 x USB – Type A, 4 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Installed Qty :1
Power Provided :650 watt
Power Consumption Operational :122 watt
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :AES, DES, SHA-1, Triple DES, PKI, MD5, IKE
Authentication Method :LDAP, RADIUS, Active Directory
Compliant Standards :ICES Class B, CS-03, DOC, CTR 21, FCC Class B certified, EN55022 Class B, UL 60950-1, CSA, EN 60950-1, VCCI Class B ITE
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :24.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90%
