SRX650BASESRE6645A Technical Specifications

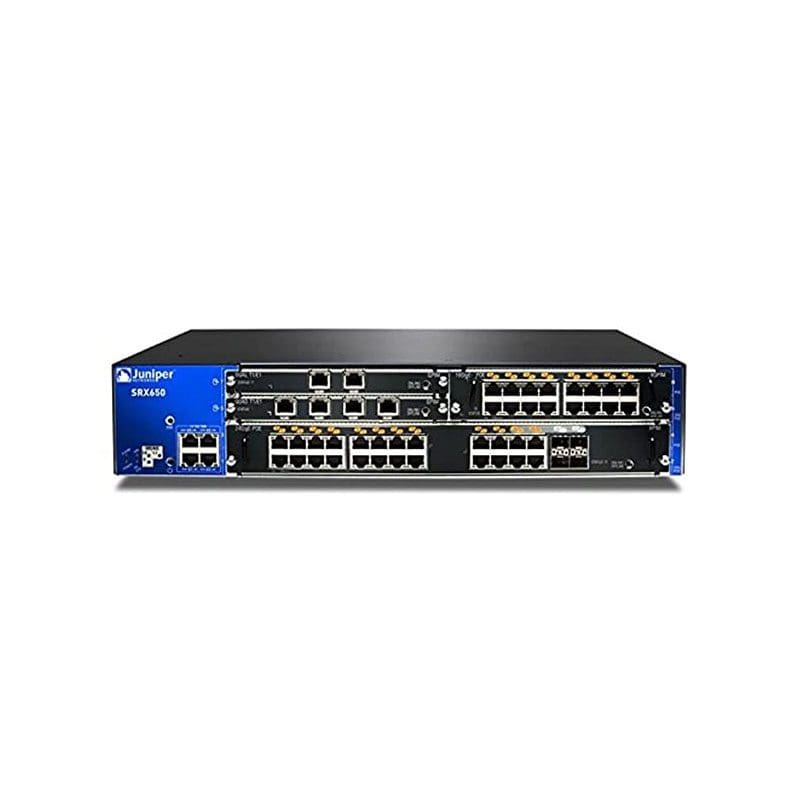

Juniper Networks SRX650 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper
Product Line :Juniper Networks
Model :SRX650 Services Gateway
Packaged Quantity :1
Flash Memory
Installed Size :2 GB
Optical Storage
Type :None
Performance
Performance :IPS throughput: 900 Mbps, Antivirus throughput: 350 Mbps, Firewall throughput (large packets): 7 Gbps, Firewall throughput (IMIX): 2.5 Gbps, 3DES+SHA1 VPN performance (large packets): 1.5 Gbps
Capacity
Capacity :Concurrent VPN tunnels: 3000, OSPF routes: 64000, Security policies: 8192, Concurrent sessions: 512000, IPSec VPN tunnels: 3000, Virtual interfaces (VLANs): 4096, VPN tunnel interfaces: 512, Security zones: 128
Networking
Type :Security appliance
Form Factor :External
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :PIM-SM, BGP, OSPF, PIM-SSM, ECMP, IGMP, IGMPv3, RIP-2, IGMPv2, RIP-1
Switching Protocol :Ethernet, Frame Relay
Network / Transport Protocol :SMTP, FTP, IMAP, IPSec, POP3, DHCP, PPPoE
Power Over Ethernet (PoE) :PoE
Features :Firewall protection, Power over Ethernet (PoE), Quality of Service (QoS), Content filtering, DHCP support, MPLS VPN, DDos attack prevention, DoS attack prevention, Jumbo Frames support, IP address filtering, Intrusion Prevention System (IPS)
Compliant Standards :IEEE 802.3at, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Expansion Slots
Expansion Slots :8 (total) / 7 (free) x expansion slot
Interface Provided
Interfaces :2 x USB – Type A, 1 x management – RJ-45, 4 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Installed Qty :1
Power Provided :650 watt
Power Consumption Operational :122 watt
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :SHA-1, DES, IKE, Triple DES, AES, PKI, MD5
Authentication Method :LDAP, RADIUS, Active Directory
Compliant Standards :CTR 21, DOC, FCC Class B certified, ICES Class B, EN55022 Class B, CS-03, VCCI Class B ITE, UL 60950-1, EN 60950-1, CSA
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :24.91 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90%
