SRX5800BASE-HC-AC Technical Specifications

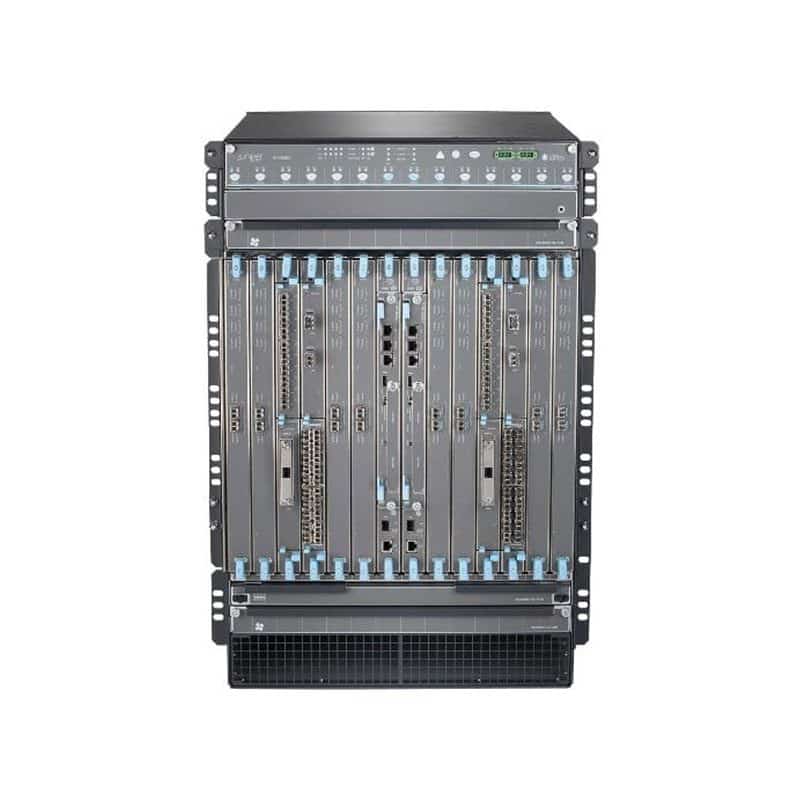

Juniper Networks SRX 5800 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5800
Packaged Quantity :1
Processor
Installed Qty :1
Clock Speed :1.3 GHZ
RAM
Installed Size :2 GB
Optical Storage
Type :None
Performance
Performance :Firewall throughput: 150 Gbps, Firewall throughput (IMIX): 37.5 Gbps, Firewall throughput (64-byte packet size): 15 Mpps, IPS throughput: 26 Gbps
Capacity
Capacity :Security policies: 80000, OSPF instances: 400, OSPF routes: 1000000, VPN tunnels (site-to-site): 15000, BGP instances: 128, RIP instances: 50, Concurrent sessions: 12500000, BGP peers: 2000, BGP routes: 1000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :BGP, Bidirectional Forwarding Detection (BFD), RIP-2, RIP-1, OSPF, RIPng, OSPFv3
Remote Management Protocol :Telnet, HTTP, HTTPS, CLI, SSH
Features :DDos attack prevention, Quality of Service (QoS), DoS attack prevention, High Availability, Intrusion Prevention System (IPS), DHCP server, Weighted Random Early Detection (WRED), DHCP relay, IPv6 support, Link Aggregation Control Protocol (LACP), Firewall protection
Compliant Standards :X.509
Expansion Slots
Expansion Slots :11 (total) / 11 (free) x expansion slot
Power Device
Type :Internal power supply
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Nominal Voltage :AC 230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Color :Blue
Encryption Algorithm :SHA-1, DES, PKI, AES, Triple DES, MD5, IKE, DH
Authentication Method :RADIUS
Compliant Standards :NEBS level 3, EMC
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :27.8 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
