SRX5600X-BASE2 Technical Specifications

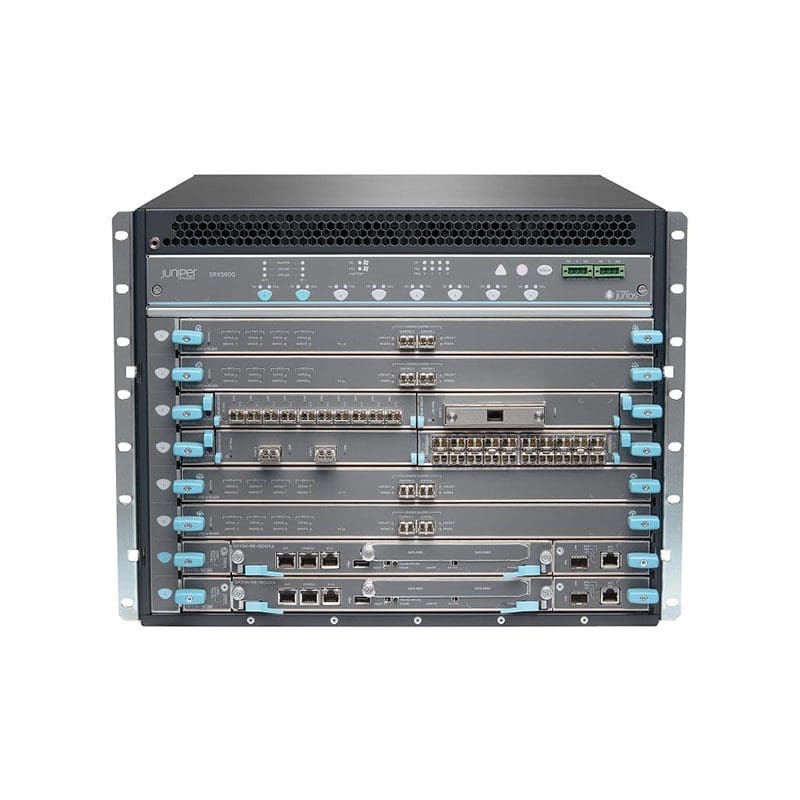

Juniper Networks SRX 5600 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5600
Bundled with :Juniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
Packaged Quantity :1
Chassis
Built-in Devices :Enhanced midplane, 128 GB SSD
Processor
Type :Xeon
Installed Qty :1
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Firewall throughput: 130 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 100 Gbps, IPS throughput: 50 Gbps, Latency: 7 µs, Firewall throughput (IMIX): 936 Gbps, Firewall throughput (large packets): 960 Gbps
Capacity
Capacity :Security zones: 2000, VPN tunnels (site-to-site): 15000, VPN tunnel interfaces: 15000, New sessions per second: 420000, Maximum number of users: unlimited, Virtual routers: 2000, Virtual interfaces (VLANs): 4096, Concurrent sessions: 76000000, OSPF routes: 1000000, OSPF instances: 400, Maximum logical network members: 32, RIP instances: 50, BGP instances: 1000, BGP peers: 2000, BGP routes: 1000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :OSPFv3, Policy-based routing (PBR), IPv4-to-IPv6 Multicast, BGP, Bidirectional Forwarding Detection (BFD), ECMP, OSPF, RIPng, RIP-2, RIP-1, Static IP routing
Network / Transport Protocol :DHCP, IPSec
Remote Management Protocol :CLI, SNMP 2, SNMP 3, HTTPS, Telnet, SSH, HTTP
Features :DHCP relay, High Availability, DDos attack prevention, IPSec Virtual Private Network (VPN), Class of Service (CoS), Intrusion Prevention System (IPS), Quality of Service (QoS), Anti-malware protection, Anti-spyware protection, PAT support, Traffic shaping, 2 fan trays, VPN support, Firmware upgradable, DiffServ support, Link Aggregation Control Protocol (LACP), In-Service Software Upgrade (ISSU), NAT support, IPv6 support, Traffic Control, DHCP server, Weighted Random Early Detection (WRED), Syslog support, Weighted Round Robin (WRR) queuing, Firewall protection, DoS attack prevention
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x Routing Engine (RE), 4 (total) / 4 (free) x expansion slot, 2 (total) / 2 (free) x Service Processing Card (SPC), 2 (total) / 0 (free) x Switch Control Board (SCB)
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :8
Encryption Algorithm :AES, SHA-1, DH, DES, MD5, IKE, Triple DES, PKI
Authentication Method :RADIUS, X.509 certificates
Compliant Standards :EMC, FIPS 140-2 Level 2, NEBS level 3
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
