SRX5600X-BASE Technical Specifications

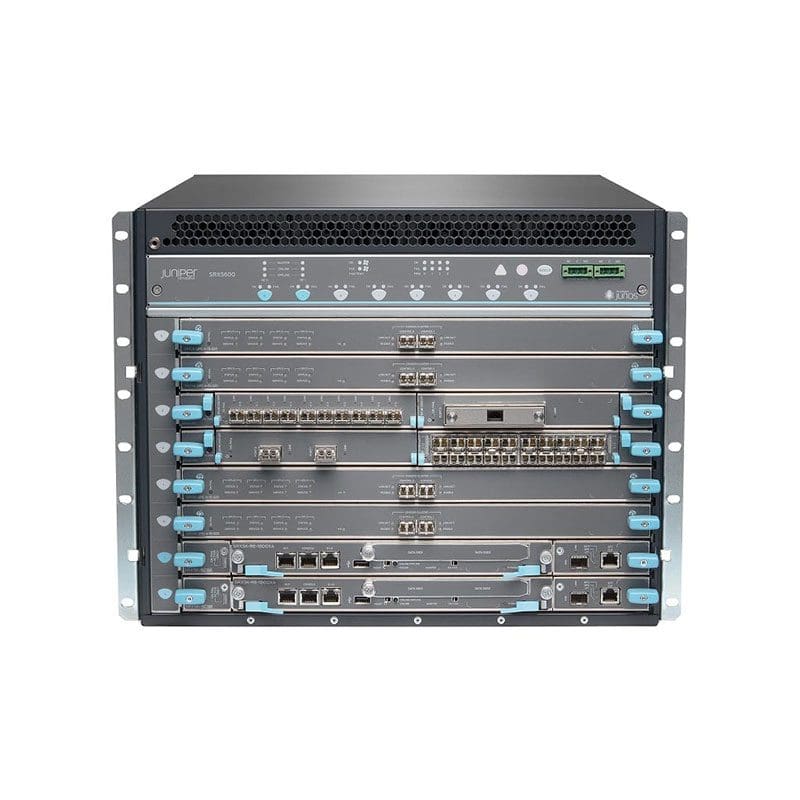

Juniper Networks SRX 5600 security appliance with Juniper Networks SRX5
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5600
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCB3
Packaged Quantity :1
Chassis
Built-in Devices :128 GB SSD, Enhanced midplane
Processor
Type :Xeon
Installed Qty :1
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Performance
Performance :IPS throughput: 50 Gbps, Firewall throughput (large packets): 960 Gbps, Latency: 7 µs, Firewall throughput: 130 Gbps, Firewall throughput (IMIX): 936 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 100 Gbps
Capacity
Capacity :BGP peers: 2000, Concurrent sessions: 76000000, Virtual interfaces (VLANs): 4096, BGP instances: 1000, OSPF instances: 400, VPN tunnels (site-to-site): 15000, RIP instances: 50, Maximum number of users: unlimited, Maximum logical network members: 32, OSPF routes: 1000000, Virtual routers: 2000, Security zones: 2000, VPN tunnel interfaces: 15000, New sessions per second: 420000, BGP routes: 1000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :RIP-2, RIP-1, IPv4-to-IPv6 Multicast, OSPFv3, Policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD), OSPF, ECMP, BGP, Static IP routing
Network / Transport Protocol :IPSec, DHCP
Remote Management Protocol :HTTPS, Telnet, CLI, SNMP 2, SNMP 3, SSH, HTTP
Features :VPN support, In-Service Software Upgrade (ISSU), DHCP relay, IPv6 support, NAT support, Weighted Random Early Detection (WRED), IPSec Virtual Private Network (VPN), Anti-malware protection, Class of Service (CoS), Weighted Round Robin (WRR) queuing, Link Aggregation Control Protocol (LACP), Firmware upgradable, DDos attack prevention, Intrusion Prevention System (IPS), Firewall protection, High Availability, Traffic Control, DiffServ support, DoS attack prevention, Fan tray, PAT support, Syslog support, Anti-spyware protection, DHCP server, Quality of Service (QoS), Traffic shaping
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Service Processing Card (SPC), 4 (total) / 4 (free) x expansion slot, 2 (total) / 1 (free) x Routing Engine (RE), 2 (total) / 1 (free) x Switch Control Board (SCB)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Power Provided :4100 watt
Nominal Voltage :AC 120/230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Height (Rack Units) :8
Encryption Algorithm :MD5, SHA-1, AES, IKE, PKI, Triple DES, DES, DH
Authentication Method :X.509 certificates, RADIUS
Compliant Standards :NEBS level 3, EMC, FIPS 140-2 Level 2
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
