SRX550-CHAS Technical Specifications

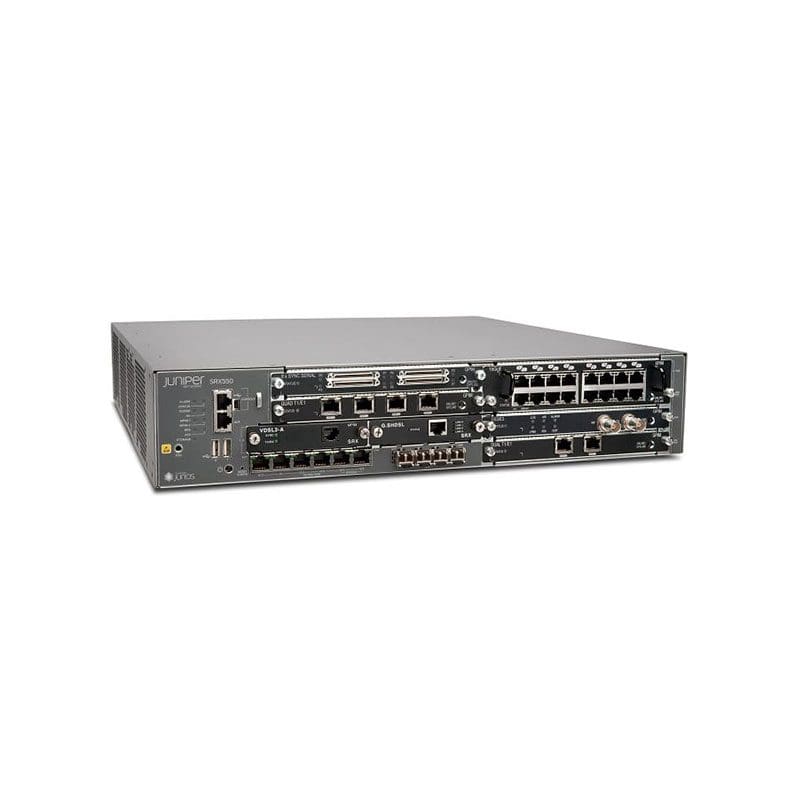

Juniper Networks SRX550 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX550 Services Gateway
Packaged Quantity :1
Optical Storage
Type :None
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Fast Ethernet, Ethernet
Features :Modular design
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Mini-Physical Interface Module (Mini-PIM), 6 (total) / 6 (free) x Gigabit-Backplane Physical Interface Module (GPIM)
Interface Provided
Interfaces :6 x 1000Base-T – RJ-45, 4 x 1000Base-X – SFP (mini-GBIC)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Height (Rack Units) :2
Compliant Standards :AS/NZS 60950-1, NEBS, VCCI Class A ITE, EMC, ICES Class A, EMI, EN300-386, FCC Class A certified, TIA/EIA/IS-968, EN55022 Class A, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CB, EN 60950-1, UL 60950-1, CS-03, ICSA IPSec certified, FIPS 140-2, DOC, EAL 4, ICSA Firewall certified, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :21.96 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
