SRX550-645AP-TAA Technical Specifications

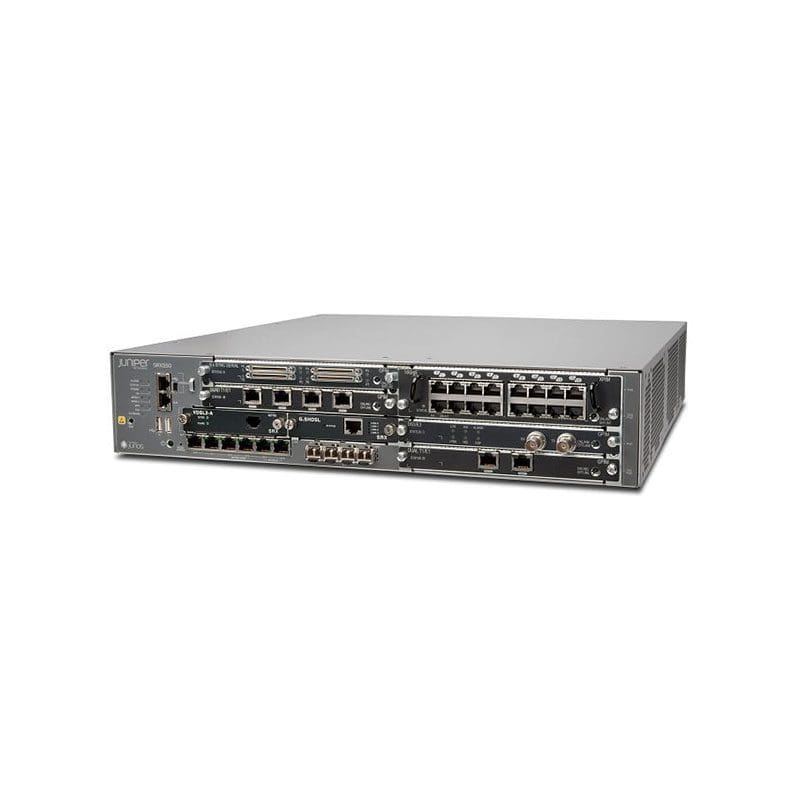

Juniper Networks SRX550 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX550 Services Gateway
Packaged Quantity :1
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Performance
Performance :Connection rate: 27000 connections per second, Antivirus throughput: 300 Mbps, Firewall throughput (IMIX): 1.7 Gbps, Firewall throughput (64-byte packet size): 700000 packets per second, IPS throughput: 800 Mbps, Firewall throughput (HTTP): 1.5 Gbps, VPN throughput (IPSec): 1 Gbps, Routing throughput: 1000000 packets per second, Firewall throughput (large packets): 5.5 Gbps
Capacity
Capacity :BGP peers: 192, Maximum number of remote users: 500, VPN tunnel interfaces: 456, RIP routes: 712000, Security policies: 7256, BGP routes: 712000, Maximum number of access points: 4, Virtual routers: 128, BGP instances: 56, Security zones: 96, Static routes: 712000, Concurrent sessions: 375000, MLPPP maximum physical interfaces: 12, RIP instances: 56, Virtual interfaces (VLANs): 3967, Concurrent VPN tunnels: 2000, MLFR maximum physical interfaces: 12, IPSec VPN tunnels: 2000, Maximum number of users: unlimited
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :RS-232, MLPPP, HDLC, Fast Ethernet, V.35, FRF.15, FRF.16, Gigabit Ethernet, FRF.12, PPP, RS-449, X.21, Frame Relay, Ethernet, MLFR
Routing Protocol :PIM-DM, OSPF, GRE, Static IP routing, MSDP, MPLS, RIPng, OSPFv3, IS-IS, MLD, RIP-2, IGMPv2, VRRP, PIM-SSM, BGP, ECMP, PIM-SM, DVMRP, RIP-1, IGMP, IGMPv3
Switching Protocol :Ethernet, Frame Relay
Network / Transport Protocol :RSVP, DHCP, IPSec, PPPoA, PPPoE
Features :Content filtering, Multiple Spanning Tree Protocol (MSTP) support, 3G/4G USB Dongle Support, Link Fragmentation and Interleaving (LFI), J-Flow, IGMP snooping, Weighted Random Early Detection (WRED), Tagged VLAN, DiffServ support, VPN support, Syslog support, LLDP support, DDos attack prevention, Firewall protection, IPv4 support, DoS attack prevention, DHCP relay, IPv6 support, DiffServ Code Point (DSCP) support, PAT support, DHCP server, Rapid Spanning Tree Protocol (RSTP) support, Modular design, NAT support, Quality of Service (QoS)
Compliant Standards :IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1D
Expansion Slots
Expansion Slots :8 (total) / 8 (free) x expansion slot
Interface Provided
Interfaces :2 x USB – Type A, 4 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T – RJ-45
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :645 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :85 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :2
Encryption Algorithm :256-bit SHA, PKI, MD5, 256-bit SHA-2, DH, DES, Triple DES, IKE, 128-bit AES, RSA, 256-bit AES, IKEv2, SHA-1
Authentication Method :SecurID, X.509 certificates, XAUTH (RADIUS, LDAP, Active Directory), RADIUS, LDAP
MTBF :9.6 years
Compliant Standards :CSA C22.2 No. 60950-1, EN 300386, CISPR 22 Class A, ICSA Firewall certified, FCC Class A certified, ICES Class A, JITC, EN 60950-1, AS/NZS 60950-1, EN55022 Class A, VCCI Class A, UL 60950-1, CS-03, ICSA IPSec certified, CB, DOC
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :3.5 inch
Weight :21.96 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
