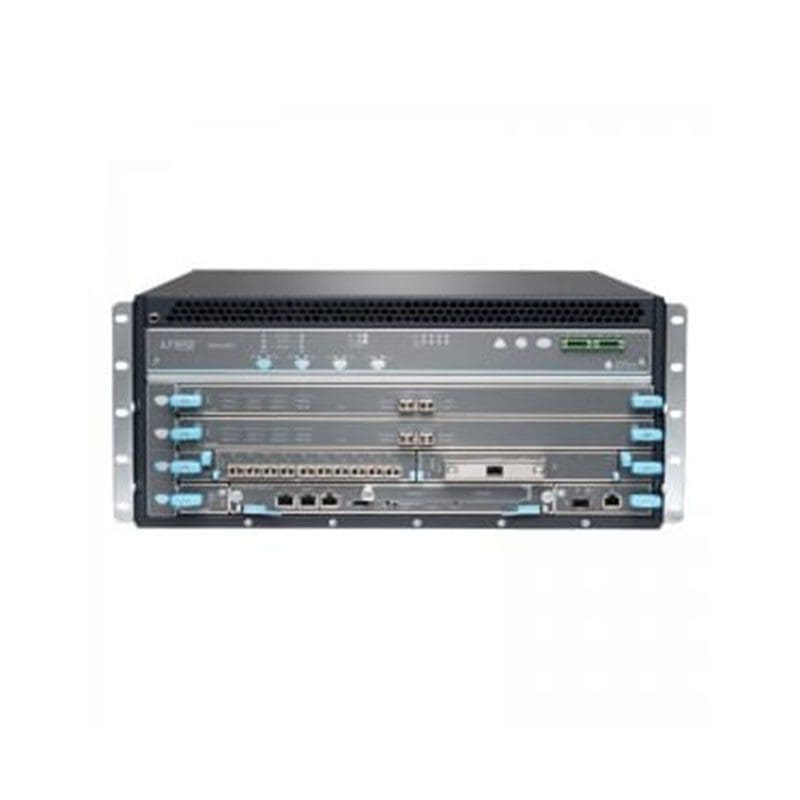

SRX5400X-B5-DC Technical Specifications
Juniper Networks SRX 5400 Cluster Bundle security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Kit :Cluster Bundle
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCB3, 2 x HC PEM, SRX5K-SPC-4-15-320, SRX5KMPC, SRX-MIC-10XG-SFPP and SRX5400-APPSEC-1 (1 year)
Packaged Quantity :2
Chassis
Built-in Devices :Enhanced midplane
Performance
Performance :AES256+SHA-1 IMIX VPN performance: 60 Gbps, IPS throughput: 230 Gbps, Firewall throughput (IMIX): 270 Gbps, Next-generation firewall performance: 100 Gbps, IPsec throughput (IKEv2, AES-256, IMIX): 140 Gbps, Latency: 32 µs
Capacity
Capacity :BGP peers: 2000, VPN tunnels (site-to-site): 15000, BGP instances: 1000, OSPF instances: 400, Security zones: 2000, BGP routes: 1000000, RIPv2 table size: 30000, VPN tunnel interfaces: 15000, Virtual firewalls with data plane and administrative separation (logical/tenant systems): 500, Concurrent sessions: 91000000, OSPF routes: 1000000, RIP instances: 50, Concurrent SSL VPN users: 25000, Routing instances with data plane separation: 2000, Virtual interfaces (VLANs): 4096
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :Static IP routing, RIPng, RIP-1, ECMP, Policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), RIP-2, OSPFv3, BGP, IPv4-to-IPv6 Multicast, OSPF
Network / Transport Protocol :IPv6, Telnet, DHCP, HTTPs, IPv4, HTTP, ARP
Remote Management Protocol :DHCP, SNMP 3, HTTP, Telnet, RADIUS, ICMP, SNMP 2, HTTPS, SSH, CLI
Features :Simple Certificate Enrollment Protocol (SCEP), Weighted Random Early Detection (WRED), In-Service Software Upgrade (ISSU), Class of Service (CoS), DoS attack prevention, Source based routing, VPN support, Firmware upgradable, IPSec Virtual Private Network (VPN), Link Aggregation Control Protocol (LACP), VPN monitoring, Firewall protection, DDos attack prevention, High Availability, Quality of Service (QoS), Policy based routing, DiffServ support, LACP support, Fan tray, DHCP server, Traffic shaping, Syslog support, PAT support, Anti-spyware protection, Anti-malware protection, IPv6 support, Dead Peer Detection (DPD), Weighted Round Robin (WRR) queuing, DHCP relay, Traffic Control, NAT support, Intrusion Prevention System (IPS)
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x Service Processing Card (SPC), 2 (total) / 1 (free) x expansion slot, 1 (total) / 0 (free) x Switch Control Board (SCB), 1 (total) / 0 (free) x Routing Engine (RE)
Interface Provided
Interfaces :10 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :4
Max Supported Qty :4
Power Provided :4100 watt
Nominal Voltage :DC -40 -60 V
Power Consumption Operational :1540 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Black
Encryption Algorithm :ESP, HMAC, MD5, 256-bit SHA, PKI, Triple DES, DES, AES, FIPS 140-2 Level 2, IKEv2, DH, 384-bit SHA, IKEv1, 512-bit SHA, SHA-1
Authentication Method :X.509 certificates, RADIUS, Secure Shell (SSH)
Compliant Standards :ICSA Firewall certified, USGv6, NEBS level 3, RoHS2, ICSA IPSec certified, EMC
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
