SRX5400E-B2-DC Technical Specifications

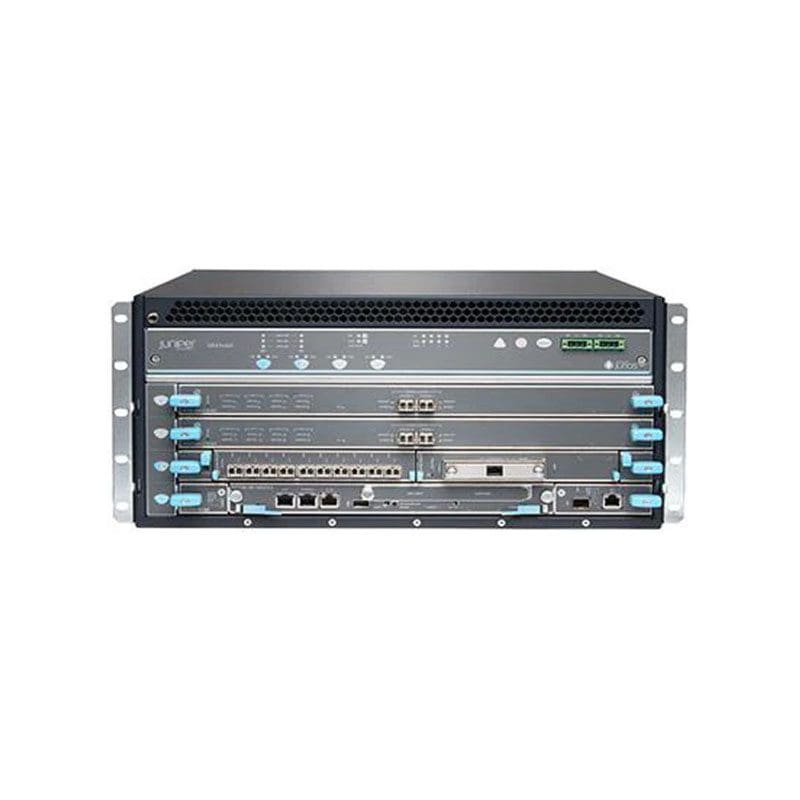

Juniper Networks SRX 5400 Enhanced Configuration 2 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Kit :Enhanced Configuration 2
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCBE, 2 x SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Performance
Performance :IPS throughput: 22 Gbps, Latency: 7 µs, Firewall throughput: 65 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 25 Gbps, 3DES+SHA1 VPN performance (large packets): 25 Gbps
Capacity
Capacity :Virtual interfaces (VLANs): 4096, VPN tunnel interfaces: 15000, VPN tunnels (site-to-site): 15000, BGP peers: 2000, OSPF instances: 400, Maximum number of users: unlimited, Concurrent sessions: 28000000, New sessions per second: 420000, Virtual routers: 2000, Maximum logical network members: 32, BGP routes: 1000000, BGP instances: 1000, Security zones: 2000, OSPF routes: 1000000, RIP instances: 50
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :RIPng, OSPFv3, RIP-1, RIP-2, Static IP routing, BGP, ECMP, Bidirectional Forwarding Detection (BFD), Policy-based routing (PBR), OSPF, IPv4-to-IPv6 Multicast
Network / Transport Protocol :DHCP
Remote Management Protocol :SNMP 3, HTTP, Telnet, CLI, SNMP 2, HTTPS, SSH
Features :DiffServ support, High Availability, In-Service Software Upgrade (ISSU), Firmware upgradable, DoS attack prevention, Intrusion Prevention System (IPS), VPN support, IPv6 support, IPSec Virtual Private Network (VPN), DHCP server, Anti-spyware protection, Syslog support, NAT support, PAT support, Fan tray, DDos attack prevention, Weighted Random Early Detection (WRED), Traffic Control, Link Aggregation Control Protocol (LACP), DHCP relay, Quality of Service (QoS), Class of Service (CoS), Anti-malware protection, Firewall protection, Weighted Round Robin (WRR) queuing, Traffic shaping
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x Routing Engine (RE), 2 (total) / 0 (free) x Service Processing Card (SPC), 1 (total) / 0 (free) x Switch Control Board (SCB), 2 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :10 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Nominal Voltage :DC -40 -60 V
System Requirements
OS Required :JUNOS
Miscellaneous
Encryption Algorithm :SHA-1, MD5, AES, DES, DH, IKE, Triple DES, PKI
Authentication Method :RADIUS
Compliant Standards :NEBS level 3, Common Criteria EAL4+, EMC
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
