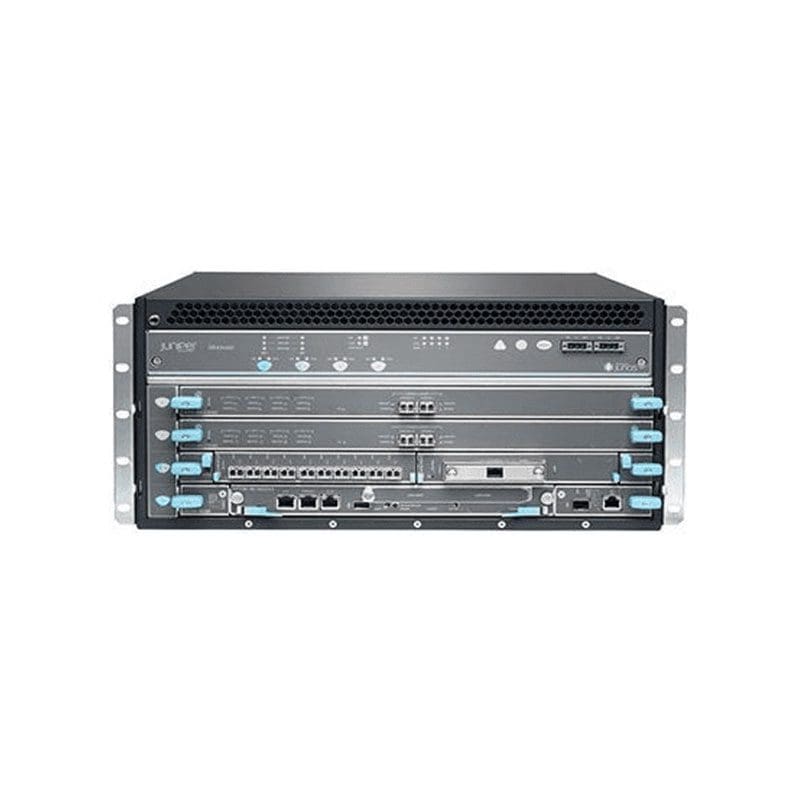

SRX5400E-B2-AC Technical Specifications
Juniper Networks SRX 5400 Configuration 2 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Kit :Configuration 2
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCBE, 2 x SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Performance
Performance :Firewall throughput: 65 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 35 Gbps, Latency: 7 µs, Firewall throughput (large packets): 480 Gbps, IPS throughput: 22 Gbps, Firewall throughput (IMIX): 468 Gbps
Capacity
Capacity :VPN tunnel interfaces: 15000, BGP peers: 2000, Virtual interfaces (VLANs): 4096, Maximum number of users: unlimited, OSPF routes: 1000000, BGP instances: 1000, Virtual routers: 2000, OSPF instances: 400, Maximum logical network members: 32, VPN tunnels (site-to-site): 15000, Security zones: 2000, BGP routes: 1000000, Concurrent sessions: 28000000, RIP instances: 50, New sessions per second: 420000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :IPv4-to-IPv6 Multicast, Policy-based routing (PBR), RIP-1, Static IP routing, RIP-2, OSPF, OSPFv3, RIPng, Bidirectional Forwarding Detection (BFD), BGP, ECMP
Network / Transport Protocol :DHCP
Remote Management Protocol :HTTP, SNMP 2, SNMP 3, Telnet, CLI, SSH, HTTPS
Features :DDos attack prevention, Firmware upgradable, Quality of Service (QoS), Class of Service (CoS), Fan tray, Anti-spyware protection, DHCP server, VPN support, Firewall protection, Link Aggregation Control Protocol (LACP), Syslog support, IPSec Virtual Private Network (VPN), In-Service Software Upgrade (ISSU), DHCP relay, DoS attack prevention, PAT support, DiffServ support, Anti-malware protection, Traffic Control, Weighted Random Early Detection (WRED), IPv6 support, Traffic shaping, Weighted Round Robin (WRR) queuing, High Availability, NAT support, Intrusion Prevention System (IPS)
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x expansion slot, 1 (total) / 0 (free) x Switch Control Board (SCB), 2 (total) / 0 (free) x Service Processing Card (SPC), 1 (total) / 0 (free) x Routing Engine (RE)
Interface Provided
Interfaces :10 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Power Provided :4100 watt
Nominal Voltage :AC 120/230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Encryption Algorithm :IKE, AES, PKI, DH, MD5, SHA-1, DES, Triple DES
Authentication Method :RADIUS
Compliant Standards :Common Criteria EAL4+, NEBS level 3, EMC
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
