SRX5400E-B1-DC Technical Specifications

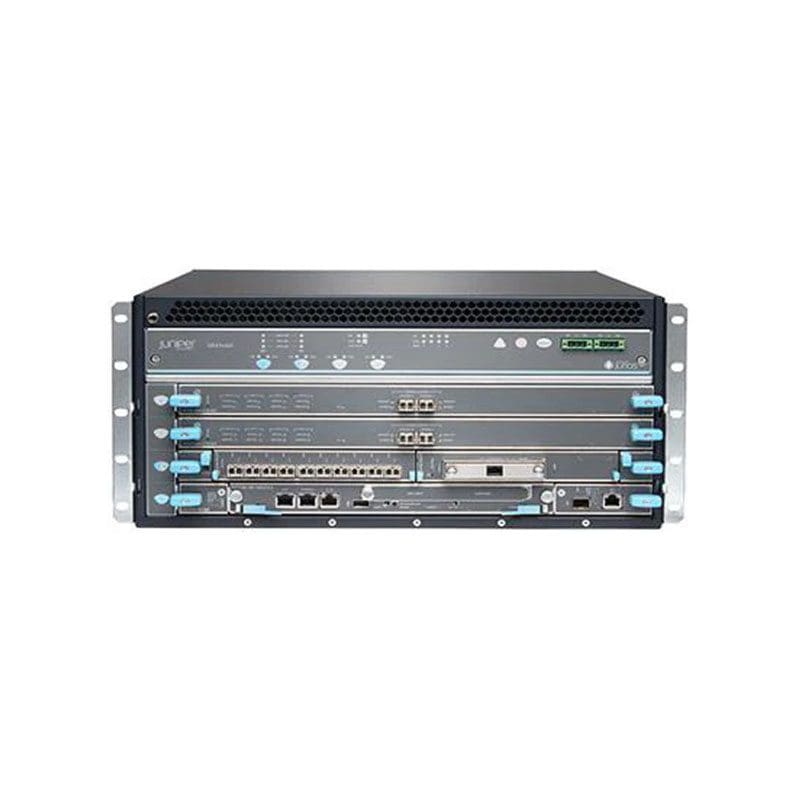

Juniper Networks SRX 5400 Enhanced Configuration 1 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Kit :Enhanced Configuration 1
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCBE, SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Performance
Performance :IPS throughput: 22 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 25 Gbps, Latency: 7 µs, 3DES+SHA1 VPN performance (large packets): 25 Gbps, Firewall throughput: 65 Gbps
Capacity
Capacity :BGP instances: 1000, VPN tunnel interfaces: 15000, OSPF instances: 400, BGP routes: 1000000, New sessions per second: 420000, BGP peers: 2000, Security zones: 2000, Maximum number of users: unlimited, Concurrent sessions: 28000000, Maximum logical network members: 32, Virtual interfaces (VLANs): 4096, OSPF routes: 1000000, VPN tunnels (site-to-site): 15000, Virtual routers: 2000, RIP instances: 50
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :OSPF, RIP-1, Bidirectional Forwarding Detection (BFD), OSPFv3, IPv4-to-IPv6 Multicast, ECMP, RIP-2, BGP, RIPng, Policy-based routing (PBR), Static IP routing
Network / Transport Protocol :DHCP
Remote Management Protocol :HTTP, SSH, CLI, Telnet, SNMP 2, HTTPS, SNMP 3
Features :NAT support, Fan tray, Anti-spyware protection, Weighted Random Early Detection (WRED), DoS attack prevention, DiffServ support, DHCP server, VPN support, Syslog support, Firewall protection, Intrusion Prevention System (IPS), Anti-malware protection, Firmware upgradable, Traffic Control, Class of Service (CoS), IPSec Virtual Private Network (VPN), Weighted Round Robin (WRR) queuing, PAT support, IPv6 support, High Availability, DDos attack prevention, In-Service Software Upgrade (ISSU), Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Traffic shaping, DHCP relay
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x expansion slot, 1 (total) / 0 (free) x Routing Engine (RE), 2 (total) / 1 (free) x Service Processing Card (SPC), 1 (total) / 0 (free) x Switch Control Board (SCB)
Interface Provided
Interfaces :10 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Nominal Voltage :DC -40 -60 V
System Requirements
OS Required :JUNOS
Miscellaneous
Encryption Algorithm :AES, Triple DES, DH, DES, SHA-1, PKI, IKE, MD5
Authentication Method :RADIUS
Compliant Standards :Common Criteria EAL4+, NEBS level 3, EMC
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
