SRX5400E-B1-AC-TAA Technical Specifications

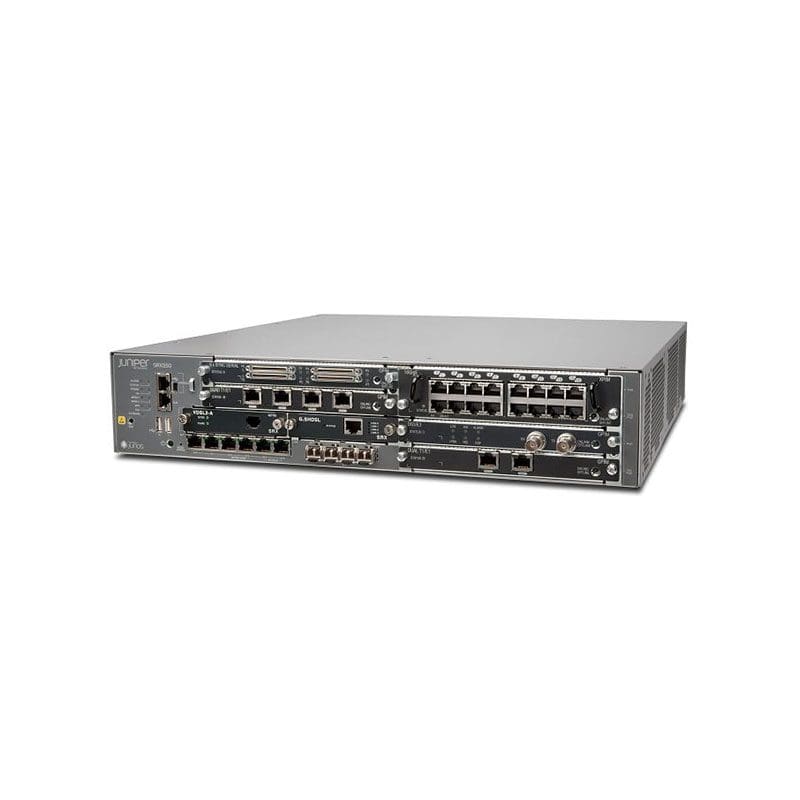

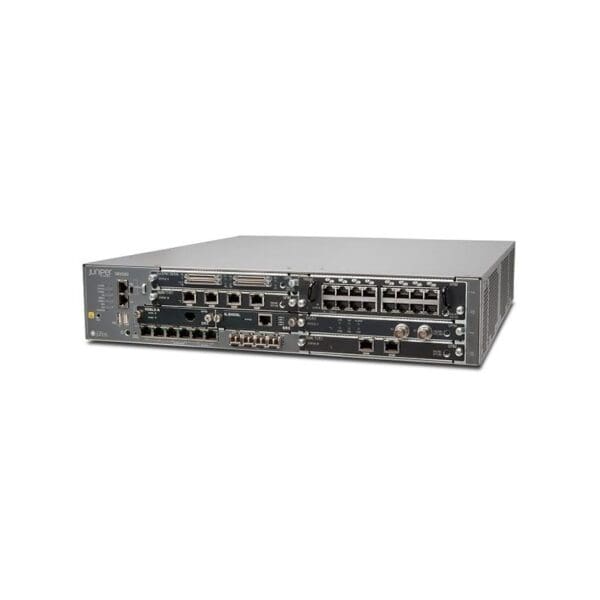

Juniper Networks SRX 5400 Configuration 1 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Kit :Configuration 1
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCBE, SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Performance
Performance :Firewall throughput (large packets): 480 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 35 Gbps, Firewall throughput (IMIX): 468 Gbps, Firewall throughput: 65 Gbps, Latency: 7 µs, IPS throughput: 22 Gbps
Capacity
Capacity :BGP routes: 1000000, Concurrent sessions: 28000000, OSPF instances: 400, Maximum number of users: unlimited, RIP instances: 50, OSPF routes: 1000000, New sessions per second: 420000, VPN tunnel interfaces: 15000, Virtual interfaces (VLANs): 4096, Virtual routers: 2000, VPN tunnels (site-to-site): 15000, Security zones: 2000, Maximum logical network members: 32, BGP peers: 2000, BGP instances: 1000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :RIP-1, BGP, Policy-based routing (PBR), OSPF, Static IP routing, ECMP, Bidirectional Forwarding Detection (BFD), OSPFv3, RIPng, RIP-2, IPv4-to-IPv6 Multicast
Network / Transport Protocol :DHCP
Remote Management Protocol :HTTPS, SNMP 3, SSH, CLI, SNMP 2, HTTP, Telnet
Features :Link Aggregation Control Protocol (LACP), Weighted Random Early Detection (WRED), Firmware upgradable, DHCP relay, VPN support, Intrusion Prevention System (IPS), Traffic Control, Fan tray, PAT support, Class of Service (CoS), IPSec Virtual Private Network (VPN), Quality of Service (QoS), High Availability, Weighted Round Robin (WRR) queuing, DoS attack prevention, DHCP server, Anti-spyware protection, Anti-malware protection, DiffServ support, IPv6 support, Firewall protection, DDos attack prevention, NAT support, In-Service Software Upgrade (ISSU), Syslog support, Traffic shaping
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x expansion slot, 1 (total) / 0 (free) x Routing Engine (RE), 1 (total) / 0 (free) x Switch Control Board (SCB), 2 (total) / 1 (free) x Service Processing Card (SPC)
Interface Provided
Interfaces :10 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Power Provided :4100 watt
Nominal Voltage :AC 120/230 V
System Requirements
OS Required :JUNOS
Miscellaneous
TAA Compliant :Yes
Encryption Algorithm :MD5, DES, Triple DES, DH, SHA-1, PKI, AES, IKE
Authentication Method :RADIUS
Compliant Standards :Common Criteria EAL4+, EMC, NEBS level 3
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
