SRX5400E-B1-AC Technical Specifications

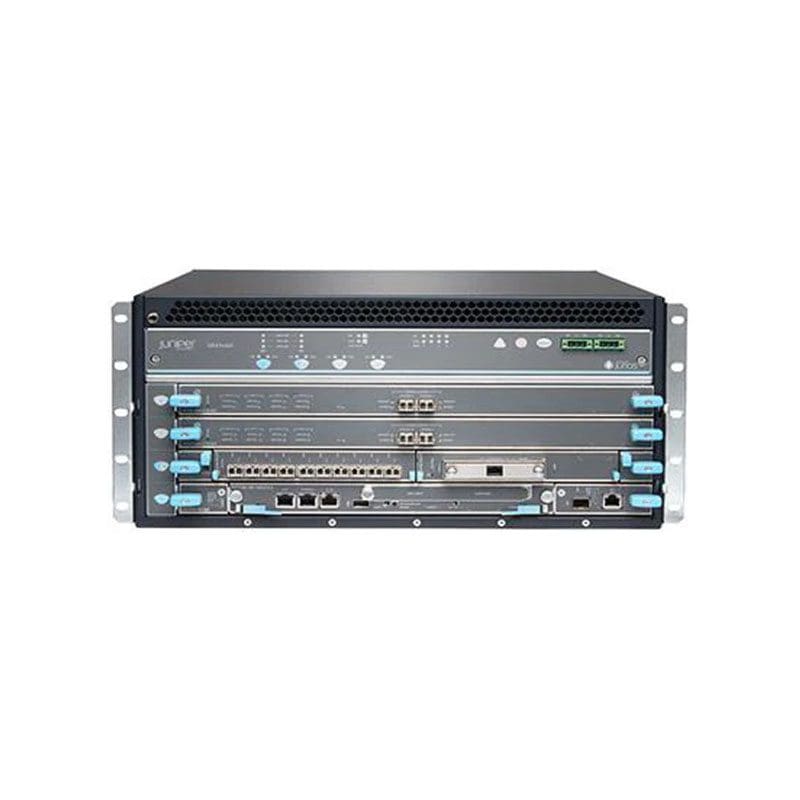

Juniper Networks SRX 5400 security appliance with Juniper Networks SRX5
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Bundled with :Juniper Networks SRX5K-RE-1800X4, SRX5K-SCBE, SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP
Packaged Quantity :1
Chassis
Built-in Devices :Midplane
Performance
Performance :VPN throughput (256-bit AES+SHA1 IPSec): 25 Gbps, Firewall throughput: 65 Gbps, 3DES+SHA1 VPN performance (large packets): 25 Gbps, IPS throughput: 22 Gbps
Capacity
Capacity :New sessions per second: 420000, BGP instances: 1000, Concurrent sessions: 28000000, OSPF instances: 400, VPN tunnel interfaces: 15000, VPN tunnels (site-to-site): 15000, Virtual interfaces (VLANs): 4096, Maximum logical network members: 32, Security zones: 2000, OSPF routes: 1000000, BGP peers: 2000, Virtual routers: 2000, BGP routes: 1000000, Maximum number of users: unlimited, RIP instances: 50
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :Static IP routing, RIPng, RIP-1, ECMP, OSPF, BGP, Policy-based routing (PBR), OSPFv3, RIP-2, IPv4-to-IPv6 Multicast, Bidirectional Forwarding Detection (BFD)
Network / Transport Protocol :DHCP
Remote Management Protocol :SNMP 2, HTTP, Telnet, SNMP 3, SSH, CLI, HTTPS
Features :DHCP relay, Anti-malware protection, Quality of Service (QoS), DHCP server, VPN support, PAT support, High Availability, IPv6 support, Firmware upgradable, IPSec Virtual Private Network (VPN), Syslog support, DiffServ support, Traffic Control, Fan tray, Link Aggregation Control Protocol (LACP), Weighted Round Robin (WRR) queuing, Anti-spyware protection, Class of Service (CoS), Firewall protection, DoS attack prevention, Intrusion Prevention System (IPS), Weighted Random Early Detection (WRED), DDos attack prevention, Traffic shaping, NAT support
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x Switch Control Board (SCB), 2 (total) / 1 (free) x expansion slot, 2 (total) / 1 (free) x Service Processing Card (SPC), 1 (total) / 0 (free) x Routing Engine (RE)
Interface Provided
Interfaces :10 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Power Provided :4100 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :JUNOS
Miscellaneous
Encryption Algorithm :IKE, PKI, MD5, DH, AES, SHA-1, DES, Triple DES
Authentication Method :RADIUS
Compliant Standards :EMC, NEBS level 3, Common Criteria EAL4+
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
