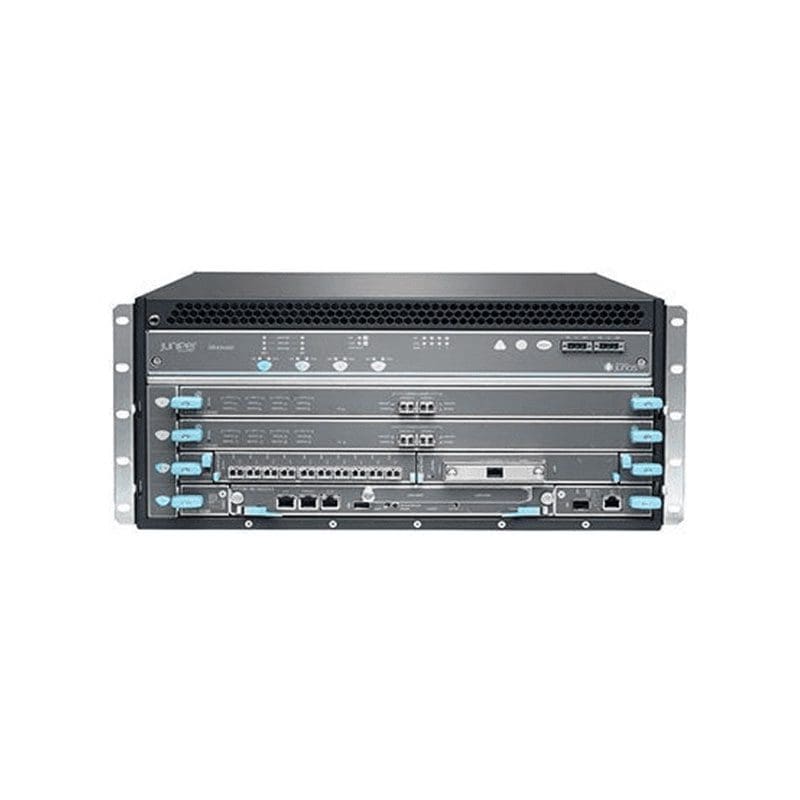

SRX5400B2-AC Technical Specifications
Juniper Networks SRX 5400 security appliance with 2 x Juniper Networks
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX 5400
Bundled with :2 x Juniper Networks SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP
Packaged Quantity :1
Performance
Performance :Firewall throughput (IMIX): 30 Gbps, IPS throughput: 22 Gbps, Firewall throughput (64-byte packet size): 9.8 Mbps, Firewall throughput: 65 Gbps, 3DES+SHA1 VPN performance (large packets): 43 Gbps, VPN throughput (256-bit AES+SHA1 IPSec): 43 Gbps
Capacity
Capacity :RIP instances: 50, OSPF routes: 1000000, VPN tunnels (site-to-site): 15000, Maximum logical network members: 32, Concurrent sessions: 28000000, BGP routes: 1000000, Virtual routers: 2000, Concurrent users: unlimited, Security policies: 80000, Security zones: 2000, New sessions per second: 450000, OSPF instances: 400, BGP instances: 1000, BGP peers: 2000, VPN tunnel interfaces: 15000, Virtual interfaces (VLANs): 4096
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :OSPF, Policy-based routing (PBR), IPv4-to-IPv6 Multicast, RIP-1, BGP, RIP-2, Static IP routing, ECMP, RIPng, OSPFv3, Bidirectional Forwarding Detection (BFD)
Network / Transport Protocol :DHCP
Remote Management Protocol :HTTP, Telnet, CLI, SNMP 2, SSH, HTTPS
Features :DDos attack prevention, Traffic Control, Link Aggregation Control Protocol (LACP), Class of Service (CoS), PAT support, NAT support, DoS attack prevention, Weighted Round Robin (WRR) queuing, Firewall protection, VPN support, Anti-spyware protection, Quality of Service (QoS), Intrusion Prevention System (IPS), Weighted Random Early Detection (WRED), Syslog support, IPv6 support, DHCP server, DHCP relay, Firmware upgradable, Anti-malware protection, IPSec Virtual Private Network (VPN), High Availability, DiffServ support, Traffic shaping
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x Routing Engine (RE), 2 (total) / 0 (free) x Service Processing Card (SPC), 2 (total) / 1 (free) x expansion slot, 1 (total) / 0 (free) x Switch Control Board (SCB)
Interface Provided
Interfaces :10 x 10GBase-X – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :2
Max Supported Qty :4
Power Provided :4100 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :JUNOS
Miscellaneous
Encryption Algorithm :SHA-1, IKE, PKI, Triple DES, DH, AES, MD5, DES
Authentication Method :RADIUS
Compliant Standards :NEBS level 3, EMC
Dimensions & Weight
Width :17.4 inch
Depth :24.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 85% (non-condensing)
