SRX4600-SYS-JB-DC Technical Specifications

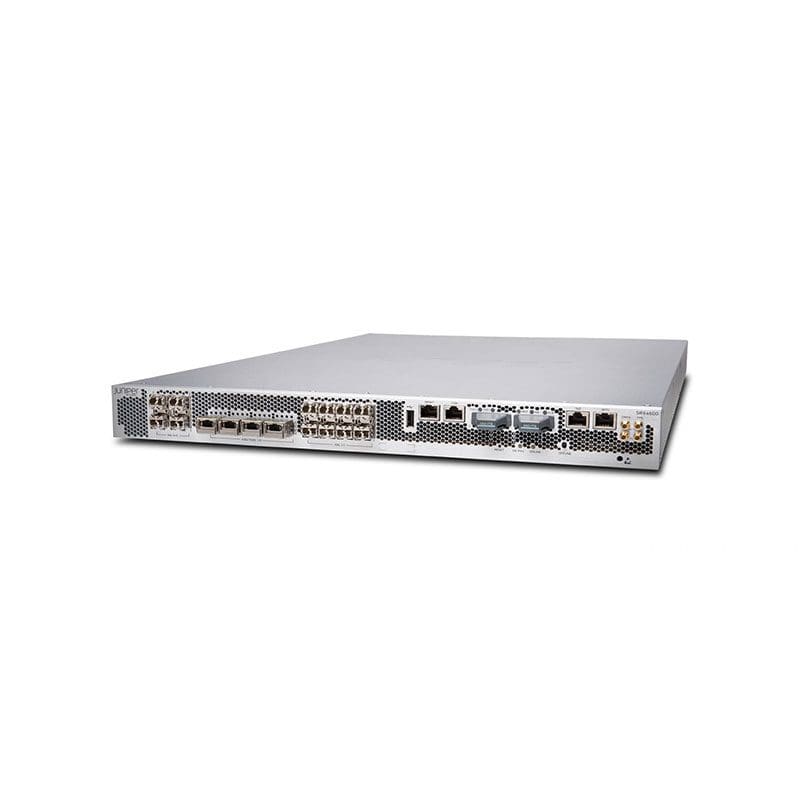

Juniper Networks SRX4600 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX4600 Services Gateway
Packaged Quantity :1
RAM
Installed Size :256 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :1 TB
Performance
Performance :Firewall throughput: 90 Gbps, IPS throughput: 20 Gbps, Firewall throughput (IMIX): 75 Gbps, Application throughput: 80 Gbps, VPN throughput (IMIX IPSec): 16 Gbps, Firewall throughput (IMIX UDP): 75 Gbps, NGFW throughput: 20 Gbps, Firewall throughput (64-byte UDP): 17 Gbps, VPN throughput (1400 B IPSec): 38 Gbps, Firewall throughput (1518-byte UDP): 95 Gbps
Capacity
Capacity :IPv6 routing table entries: 2000000, Firewall connections per second: 500000, Maximum number of sessions: 60000000, Security policies: 80000, IPv4 routing table entries: 4000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :12
Connectivity Technology :Wired
Data Link Protocol :100 Gigabit Ethernet, Ethernet, 40 Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Routing Protocol :BGP, IGMPv2, OSPF, Static IPv6 routing, IGMP, Static IPv4 routing, RIP-1, IS-IS, Bidirectional PIM, OSPFv3, RIP-2
Network / Transport Protocol :PPPoE, DHCP, IPSec
Remote Management Protocol :SNMP, SSH, Telnet
Features :IPSec Virtual Private Network (VPN), Intrusion Prevention System (IPS), High Availability, DHCP relay, NAT support, Multicast Source Discovery Protocol (MSDP), Source-Specific Multicast (SSM), DHCP client, VPN support, Weighted Random Early Detection (WRED), IGMP filtering, Dynamic DNS server, Antivirus analysis, J-Flow, Generic Routing Encapsulation (GRE), Firewall protection, VLAN support, DNS proxy, IPv6 support, DDos attack prevention, Quality of Service (QoS), Anti-spam protection, 5 fans, DiffServ Code Point (DSCP) support, DHCP server, IPSec NAT-Traversal (NAT-T), Equal-Cost Multipath (ECMP), Virtual Route Redundancy Protocol (VRRP) support, Dead Peer Detection (DPD)
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :1 x management (RS-232) – RJ-45, 1 x 10 MHz output timing port – F connector, 1 x BITS timing port – RJ-48, 8 x 10Gb Ethernet – SFP+, 2 x 10Gb Ethernet (HA) control – SFP+, 1 x PPS output timing port – F connector, 1 x 1000Base-T (management) – RJ-45, 1 x 10 MHz input timing port – F connector, 2 x 10Gb Ethernet (HA) data – SFP+, 1 x RS-232 – RJ-45, 4 x 40Gb Ethernet/100Gb Ethernet – QSFP28, 1 x PPS input timing port – F connector, 1 x USB 2.0 – Type A
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :1100 watt
Nominal Voltage :DC -48 V
Power Consumption Operational :650 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :IKEv2, SHA-1, 256-bit SHA, IKE, 256-bit AES, 128-bit SHA, Triple DES, PKI
MTBF :112,000 Hours
Compliant Standards :NEBS level 3, RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :27.3 inch
Height :1.7 inch
Weight :38.01 lbs
Dimensions & Weight (Shipping)
Shipping Weight :45.46 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
