SRX4100-SYS-JE-AC Technical Specifications

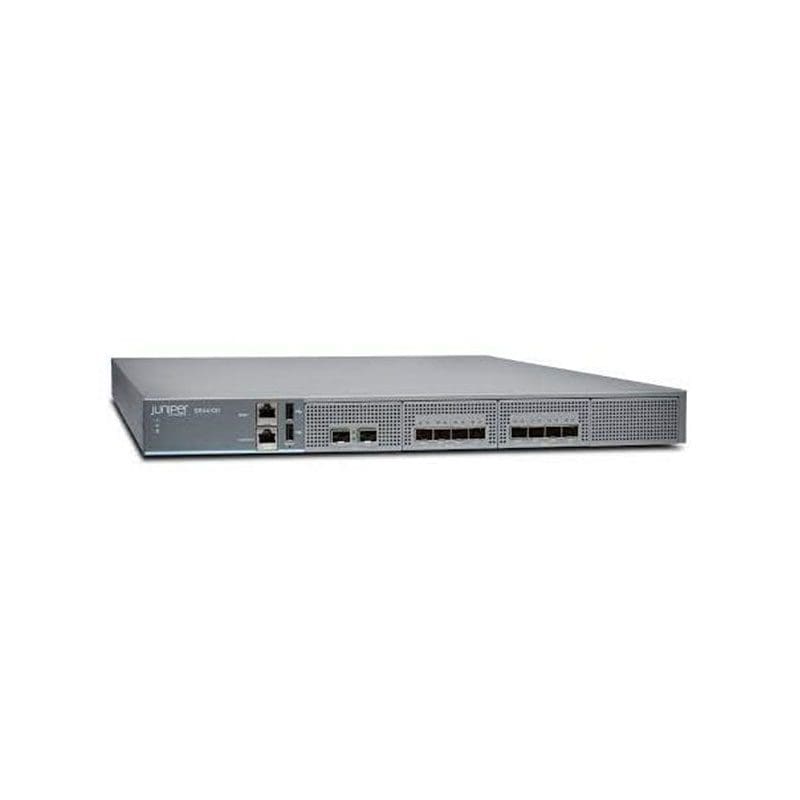

Juniper Networks SRX4100 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX4100 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :64 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :240 GB
Performance
Performance :Firewall throughput (64-byte packet size): 5 Gbps, IPSes throughput (1400-byte packet size): 10 Gbps, Firewall throughput: 7 Gbps, VPN throughput (IPSec): 5 Gbps, Connection rate: 175000 connections per second, Firewall throughput (IMIX): 20 Gbps, IPS throughput: 10 Gbps, Firewall throughput (1518-byte packet size): 40 Gbps, Application control (AVC) throughput: 18 Gbps
Capacity
Capacity :Security policies: 60000, Concurrent sessions: 5000000, Routing table entries: 2000000, Forwarding table entries: 2000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :IGMP, OSPF, BGP, Bidirectional PIM, IS-IS, Static IPv6 routing, RIP-1, RIP-2, Static IPv4 routing, IGMPv2, OSPFv3
Network / Transport Protocol :PPPoE, IPSec, DHCP
Remote Management Protocol :SSH, SNMP, Telnet
Data Transfer Rate :10 GBps
Features :Front to back airflow, Anti-spam protection, J-Flow, DiffServ Code Point (DSCP) support, Intrusion Prevention System (IPS), Virtual Route Redundancy Protocol (VRRP) support, DDos attack prevention, MPLS support, Generic Routing Encapsulation (GRE), Dead Peer Detection (DPD), Weighted Random Early Detection (WRED), Firewall protection, DHCP client, IGMP filtering, Equal-Cost Multipath (ECMP), Label Distribution Protocol (LDP), Source-Specific Multicast (SSM), IPv6 support, DNS proxy, DHCP server, VPN support, VLAN support, Quality of Service (QoS), Virtual Private LAN Service (VPLS), IPSec NAT-Traversal (NAT-T), Multicast Source Discovery Protocol (MSDP), Dynamic DNS server, Antivirus analysis, High Availability, DHCP relay, IPSec Virtual Private Network (VPN), NAT support
Compliant Standards :IEEE 802.1p, X.509
Interface Provided
Interfaces :8 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+, 2 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :200 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :128-bit SHA, 256-bit AES, SHA-1, IKEv2, 256-bit SHA, Triple DES, PKI, IKE
MTBF :12 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :25 inch
Height :1.7 inch
Weight :28.99 lbs
Dimensions & Weight (Shipping)
Shipping Weight :47.49 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
