SRX3600BASE-AC Technical Specifications

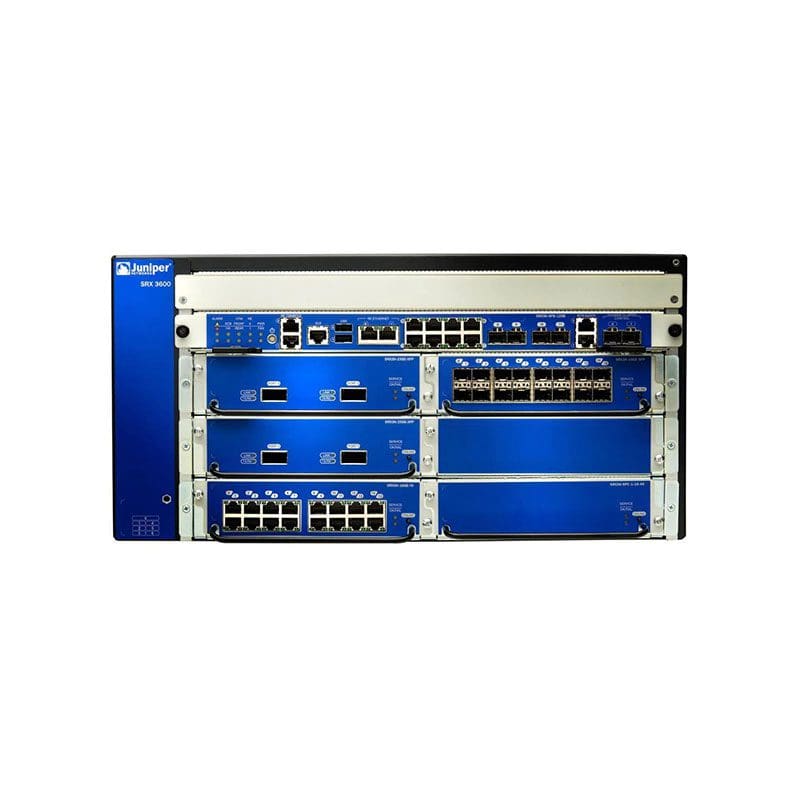

Juniper Networks SRX3600 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX3600
Packaged Quantity :1
Optical Storage
Type :None
Capacity
Capacity :VPN tunnel interfaces: 5000, VPN tunnels: 10000
Networking
Type :Security appliance
Form Factor :External
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Gigabit Ethernet, Fast Ethernet
Routing Protocol :RIP-1, BGP, OSPF, RIP-2
Remote Management Protocol :SNMP 3, HTTPS, SNMP 2, HTTP, SSH
Data Transfer Rate :1 GBps
Features :Weighted Random Early Detection (WRED), IPSec passthrough, DHCP support, Quality of Service (QoS), DDos attack prevention
Expansion Slots
Expansion Slots :6 (total) / 6 (free) x expansion slot, 4 (total) / 4 (free) x
Interface Provided
Interfaces :8 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Installed Qty :2
Nominal Voltage :AC 120/230 V
Miscellaneous
Encryption Algorithm :PKI, MD5, SHA-1, AES, DH, DES, IKE, RSA
Authentication Method :LDAP, RADIUS, Active Directory
Dimensions & Weight
Width :17.5 inch
Depth :25.5 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90%
