SRX345-TAA Technical Specifications

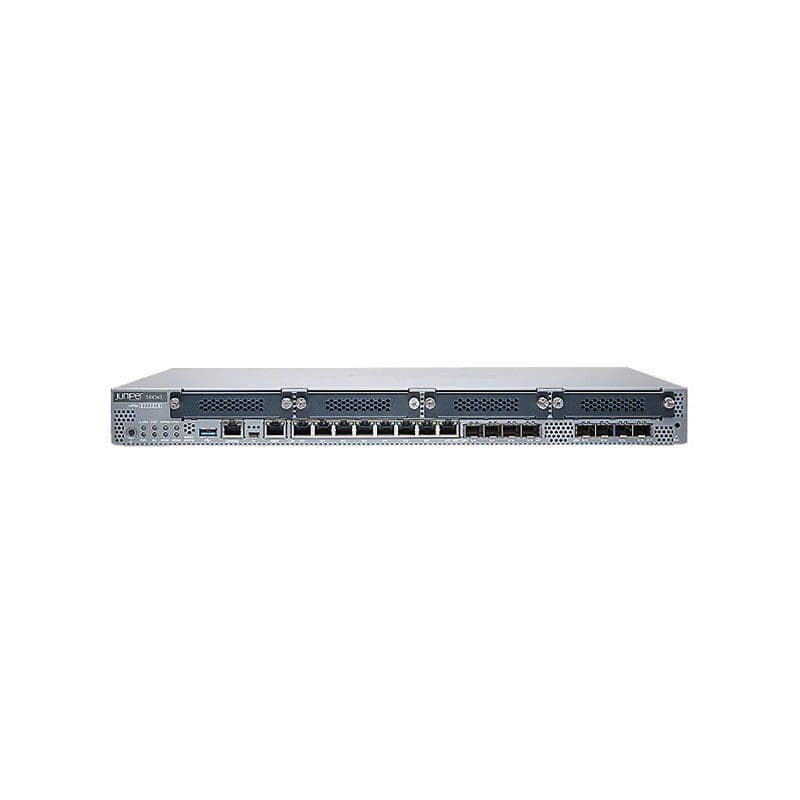

Juniper Networks SRX345 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX345 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Performance
Performance :VPN throughput (1400-byte packet size): 800 Mbps, VPN throughput (IPSec): 300 Mbps, Firewall throughput (IMIX): 2 Gbps, Firewall throughput (64-byte packet size): 700 Kpps, Connection rate: 20000 connections per second, IPS throughput: 500 Mbps, Firewall throughput (1518-byte packet size): 5 Gbps
Capacity
Capacity :MAC addresses: 15000, Security policies: 4000, Maximum number of users: 200, Virtual routers: 128, IPSec VPN tunnels: 2048, Virtual interfaces (VLANs): 3000, IPv4 routing table entries: 2000000, Concurrent sessions: 512000, Security zones: 64, Maximum number of NAT rules: 2000, GRE tunnels: 1024, IPv6 routing table entries: 1000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :HDLC, Frame Relay, PPP, MLPPP, Ethernet, Gigabit Ethernet, MLFR, Fast Ethernet
Routing Protocol :BGP, MSDP, RIP-1, RIP-2, MPLS, IGMPv2, IGMP, Static IP routing, OSPF, ECMP, PIM-SSM, PIM-DM, DVMRP, IS-IS, OSPFv3, VRRP, PIM-SM
Network / Transport Protocol :RSVP, DDNS, DNS, IPSec, PPPoE, DHCP
Remote Management Protocol :CLI, SSH, SNMP, HTTP, Telnet
Features :J-Flow, DHCP client, VPN support, IPv4 support, Dead Peer Detection (DPD), PAT support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, MACsec support, IPv6 support, Label Distribution Protocol (LDP), Firewall protection, Anti-spam protection, Front to back airflow, DHCP relay, Anti-virus protection, Generic Routing Encapsulation (GRE), Intrusion Prevention System (IPS), Rapid Spanning Tree Protocol (RSTP) support, DiffServ Code Point (DSCP) support, Inspect SSL Encrypted Traffic, IPSec NAT-Traversal (NAT-T), NAT support, LLDP support, DDos attack prevention, URL filtering, DHCP server, Weighted Random Early Detection (WRED), Virtual Private LAN Service (VPLS)
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 2.0 – Type A, 1 x mini-USB, 8 x 1000Base-T – RJ-45, 1 x console – RJ-45, 1 x management – RJ-45, 8 x 1000Base-X – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Consumption Operational :122 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :IKE, 256-bit AES, SSL, SHA-1, 256-bit SHA, MD5, Triple DES, DES, PKI, IKEv2
Authentication Method :Secure Shell (SSH), X.509 certificates
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
