SRX345-SYS-JE-DC Technical Specifications

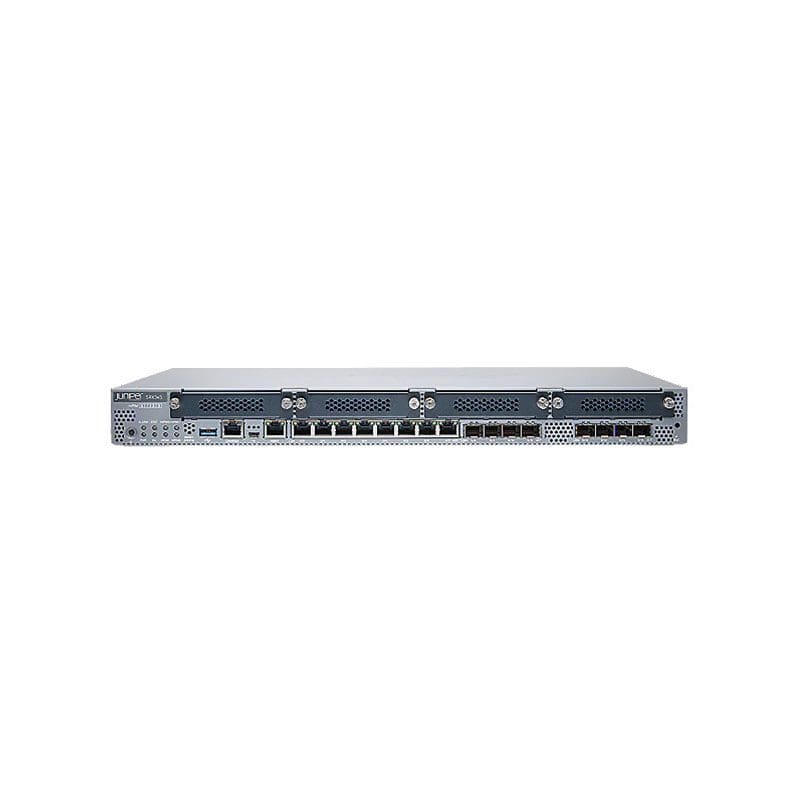

Juniper Networks SRX345 Services Gateway DC Power Supply Unit
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX345 Services Gateway
Edition :DC Power Supply Unit
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Performance
Performance :Firewall throughput (64-byte packet size): 700 Kpps, VPN throughput (IPSec): 300 Mbps, Firewall throughput (1518-byte packet size): 5 Gbps, VPN throughput (1400-byte packet size): 800 Mbps, Firewall throughput (IMIX): 2 Gbps, IPS throughput: 500 Mbps, Connection rate: 20000 connections per second
Capacity
Capacity :Security zones: 64, Maximum number of NAT rules: 2000, IPv6 routing table entries: 1000000, IPv4 routing table entries: 2000000, Virtual interfaces (VLANs): 3000, MAC addresses: 15000, IPSec VPN tunnels: 2048, GRE tunnels: 1024, Security policies: 4000, Maximum number of users: 200, Concurrent sessions: 512000, Virtual routers: 128
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :16
Connectivity Technology :Wired
Data Link Protocol :Frame Relay, Fast Ethernet, Gigabit Ethernet, HDLC, MLFR, MLPPP, Ethernet, PPP
Routing Protocol :OSPFv3, PIM-SSM, IS-IS, MSDP, BGP, IGMPv2, DVMRP, PIM-SM, IGMP, RIP-2, Static IP routing, MPLS, PIM-DM, ECMP, RIP-1, OSPF, VRRP
Network / Transport Protocol :DDNS, DNS, DHCP, IPSec, RSVP, PPPoE
Remote Management Protocol :HTTP, SNMP, Telnet, SSH, CLI
Features :IPSec NAT-Traversal (NAT-T), DHCP client, Inspect SSL Encrypted Traffic, Weighted Random Early Detection (WRED), Generic Routing Encapsulation (GRE), LLDP support, J-Flow, PAT support, Virtual Private LAN Service (VPLS), Rapid Spanning Tree Protocol (RSTP) support, Intrusion Prevention System (IPS), DiffServ Code Point (DSCP) support, IPv6 support, DHCP server, Dead Peer Detection (DPD), DDos attack prevention, IPv4 support, Anti-spam protection, Spanning Tree Protocol (STP) support, Firewall protection, Quality of Service (QoS), Label Distribution Protocol (LDP), Front to back airflow, DHCP relay, VPN support, NAT support, Anti-virus protection, MACsec support, URL filtering
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :1 x management – RJ-45, 1 x console – RJ-45, 1 x mini-USB, 8 x 1000Base-T – RJ-45, 1 x USB 2.0 – Type A, 8 x 1000Base-X – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :Internal power supply
Installed Qty :1
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Included Accessories :Rack mount kit
Height (Rack Units) :1
Encryption Algorithm :IKEv2, 256-bit AES, DES, MD5, IKE, SSL, PKI, Triple DES, 256-bit SHA, SHA-1
Authentication Method :X.509 certificates, Secure Shell (SSH)
MTBF :27.4 years
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.4 inch
Depth :14.6 inch
Height :1.7 inch
Weight :10.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
