SRX345-SYS-JE Technical Specifications

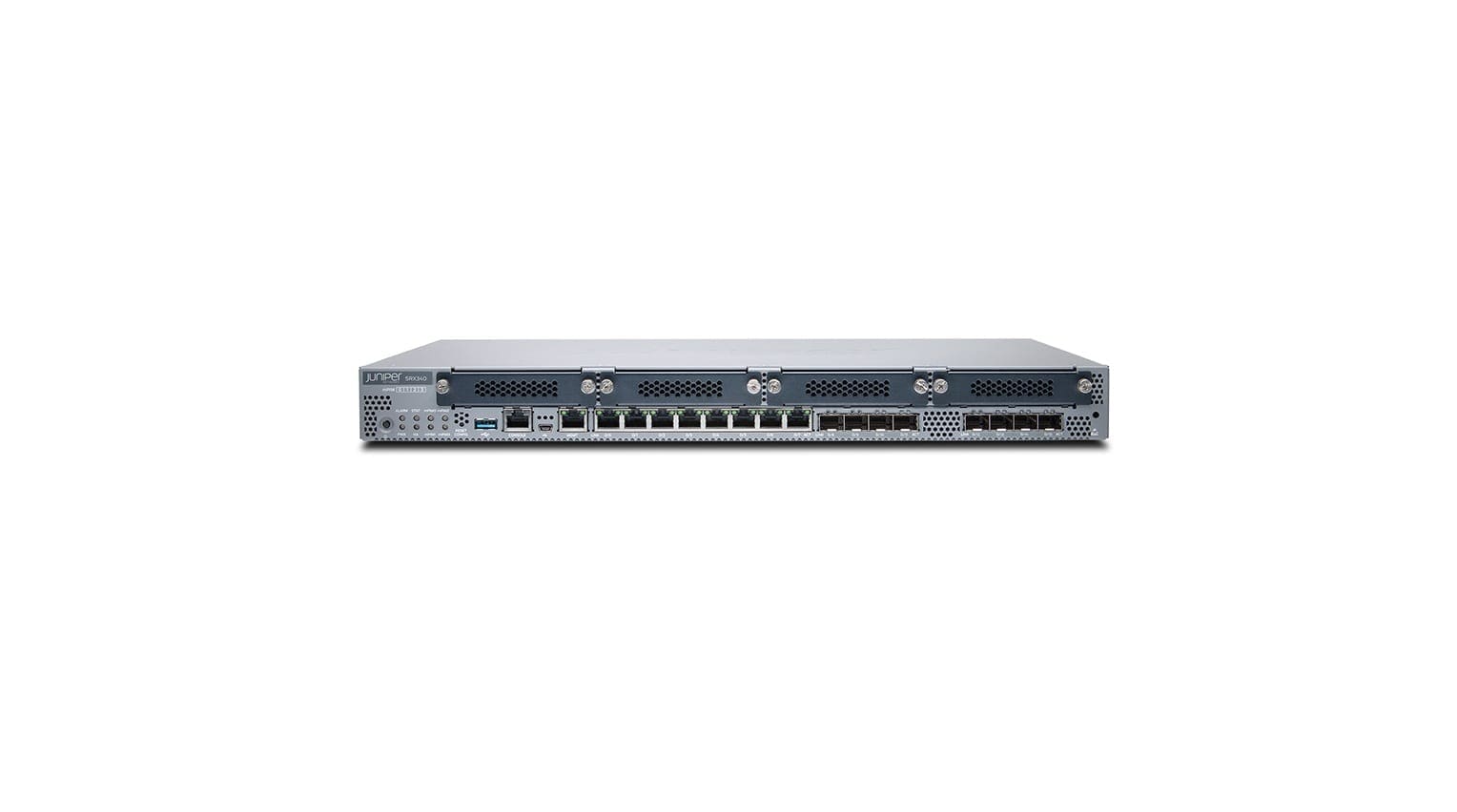

Juniper Networks SRX345 Services Gateway security appliance
-
- Netscreen
- Juniper, Juniper Networks
- Juniper Networks
- SRX345 Services Gateway
- 1
-
Chassis
- Front to back airflow
-
RAM
- 4 GB
-
Flash Memory
- 8 GB, 8 GB
-
Hard Drive
- SSD
-
Performance
- VPN throughput (IPSec): 300 Mbps, Connection rate: 20000 connections per second, Firewall throughput (1518-byte packet size): 5 Gbps, Firewall throughput (64-byte packet size): 700 Kpps, Firewall throughput (IMIX): 2 Gbps, IPS throughput: 500 Mbps, VPN throughput (1400-byte packet size): 800 Mbps
-
Capacity
- Maximum number of NAT rules: 2000, Virtual interfaces (VLANs): 3000, Virtual routers: 128, Security zones: 64, MAC addresses: 15000, Maximum number of users: 200, Concurrent sessions: 512000, IPv4 routing table entries: 2000000, IPSec VPN tunnels: 2048, IPv6 routing table entries: 1000000, Security policies: 4000, GRE tunnels: 1024
-
Networking
- Security appliance
- Rack-mountable
- 16
- Wired
- Gigabit Ethernet, Frame Relay, MLFR, MLPPP, Fast Ethernet, HDLC, Ethernet, PPP
- PIM-SSM, IGMPv2, MSDP, OSPF, ECMP, BGP, IS-IS, OSPFv3, DVMRP, MPLS, PIM-DM, RIP-1, PIM-SM, VRRP, RIP-2, Static IP routing, IGMP
- DDNS, IPSec, DHCP, DNS, RSVP, PPPoE
- SSH, Telnet, SNMP, CLI, HTTP
- Inspect SSL Encrypted Traffic, Weighted Random Early Detection (WRED), NAT support, IPSec NAT-Traversal (NAT-T), DHCP client, Intrusion Prevention System (IPS), Firewall protection, Anti-spam protection, PAT support, Anti-virus protection, DHCP relay, VPN support, Spanning Tree Protocol (STP) support, DHCP server, Virtual Private LAN Service (VPLS), DDos attack prevention, DiffServ Code Point (DSCP) support, Dead Peer Detection (DPD), URL filtering, J-Flow, Rapid Spanning Tree Protocol (RSTP) support, Label Distribution Protocol (LDP), Front to back airflow, Generic Routing Encapsulation (GRE), IPv6 support, IPv4 support, MACsec support, LLDP support, Quality of Service (QoS)
- IEEE 802.1p, IEEE 802.1x
-
IP Telephony
- SDP
-
Expansion Slots
- 4 (total) / 4 (free) x expansion slot
-
Interface Provided
- 1 x mini-USB, 8 x 1000Base-T – RJ-45, 1 x management – RJ-45, 8 x 1000Base-X – SFP (mini-GBIC), 1 x USB 2.0 – Type A, 1 x console – RJ-45
-
OS Provided
- JUNOS
-
Software
- Junos Software Enhanced
-
Power Device
- Internal power supply
- 1
- 2
- 122 watt
-
Miscellaneous
- Gray
- Rack mount kit
- 1
- SHA-1, 256-bit AES, MD5, SSL, PKI, IKE, 256-bit SHA, IKEv2, DES, Triple DES
- Secure Shell (SSH), X.509 certificates
- 240,000 Hours
- FCC Class A certified, RoHS2
-
Dimensions & Weight
- 17.4 inch
- 14.6 inch
- 1.7 inch
- 10.8 lbs
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- 10 – 90% (non-condensing)
