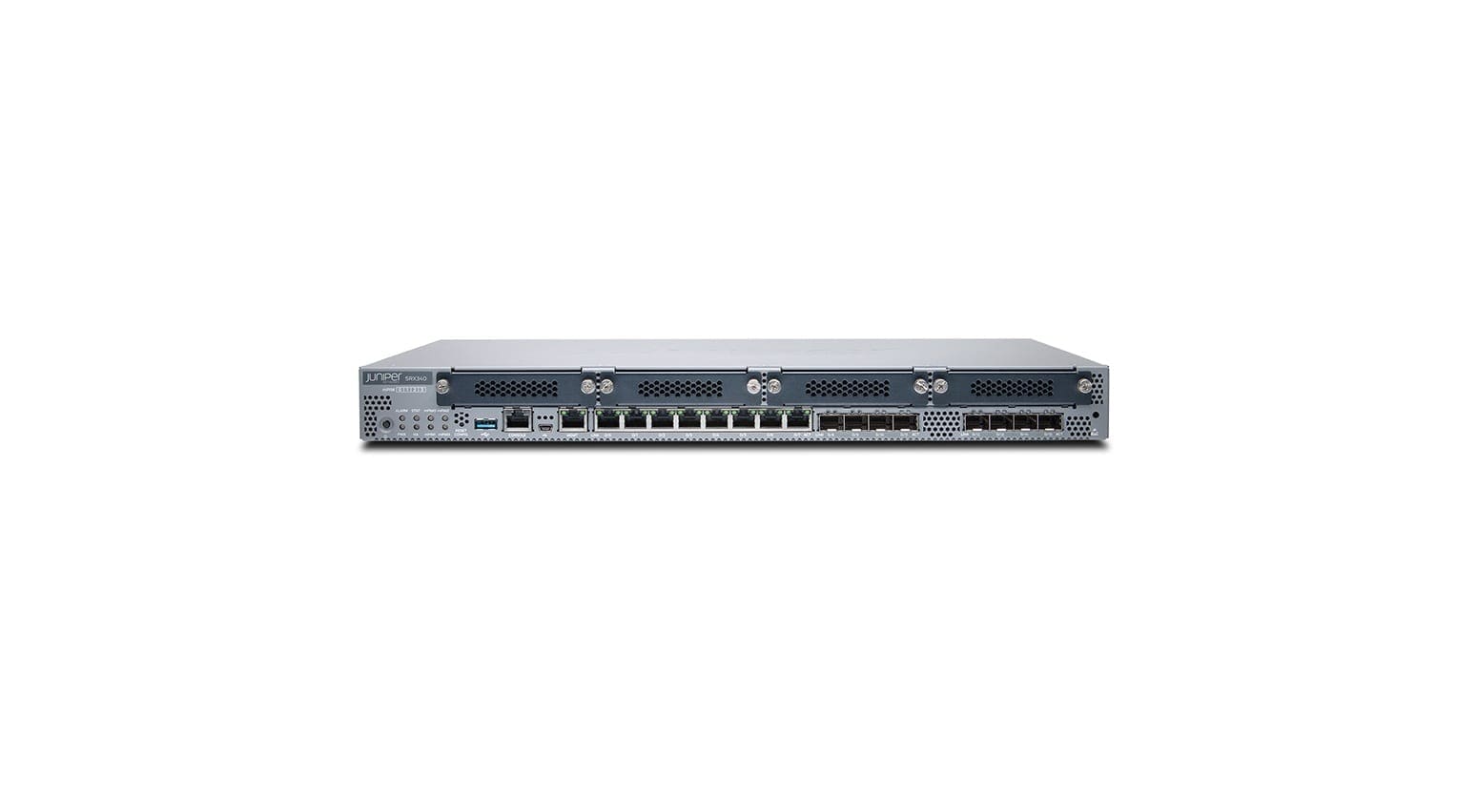

SRX345-DUAL-AC-T Technical Specifications
Juniper SRX345 Hardware Only
-
- Netscreen
- Juniper, Juniper Networks
- Juniper TDSourcing
- SRX345 Services Gateway
- 1
-
Chassis
- Front to back airflow
-
RAM
- 4 GB
-
Flash Memory
- 8 GB, 8 GB
-
Hard Drive
- SSD
-
Performance
- VPN throughput (1400-byte packet size): 800 Mbps, Connection rate: 20000 connections per second, VPN throughput (IPSec): 300 Mbps, IPS throughput: 500 Mbps, Firewall throughput (64-byte packet size): 700 Kpps, Firewall throughput (IMIX): 2 Gbps, Firewall throughput (1518-byte packet size): 5 Gbps
-
Capacity
- Maximum number of users: 200, Virtual routers: 128, IPSec VPN tunnels: 2048, Concurrent sessions: 512000, Security policies: 4000, IPv6 routing table entries: 1000000, Security zones: 64, Maximum number of NAT rules: 2000, IPv4 routing table entries: 2000000, GRE tunnels: 1024, Virtual interfaces (VLANs): 3000, MAC addresses: 15000
-
Networking
- Security appliance
- Rack-mountable
- 16
- Wired
- PPP, Gigabit Ethernet, MLFR, MLPPP, Frame Relay, Fast Ethernet, HDLC, Ethernet
- OSPF, PIM-DM, BGP, MSDP, VRRP, PIM-SSM, IS-IS, Static IP routing, IGMPv2, PIM-SM, ECMP, MPLS, IGMP, DVMRP, RIP-2, OSPFv3, RIP-1
- RSVP, IPSec, PPPoE, DDNS, DHCP, DNS
- SNMP, SSH, HTTP, CLI, Telnet
- Virtual Private LAN Service (VPLS), Label Distribution Protocol (LDP), Generic Routing Encapsulation (GRE), Quality of Service (QoS), DHCP server, Spanning Tree Protocol (STP) support, VPN support, IPv4 support, J-Flow, PAT support, Intrusion Prevention System (IPS), Firewall protection, Dead Peer Detection (DPD), Anti-spam protection, IPv6 support, DiffServ Code Point (DSCP) support, DHCP relay, URL filtering, IPSec NAT-Traversal (NAT-T), Weighted Random Early Detection (WRED), LLDP support, DDos attack prevention, Rapid Spanning Tree Protocol (RSTP) support, MACsec support, Front to back airflow, NAT support, DHCP client, Inspect SSL Encrypted Traffic, Anti-virus protection
-
IP Telephony
- SDP
-
Expansion Slots
- 4 (total) / 4 (free) x expansion slot
-
Interface Provided
- 8 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 1 x USB 2.0 – Type A, 1 x console – RJ-45, 8 x 1000Base-T – RJ-45, 1 x management – RJ-45
-
OS Provided
- JUNOS
-
Power Device
- Internal power supply
- Yes
- 2
- 2
- 122 watt
-
Miscellaneous
- Gray
- Rack mount kit
- 1
- SHA-1, 256-bit SHA, IKEv2, 256-bit AES, SSL, IKE, MD5, Triple DES, PKI, DES
- Secure Shell (SSH), X.509 certificates
- 240,000 Hours
-
Dimensions & Weight
- 17.4 inch
- 14.6 inch
- 1.7 inch
- 10.8 lbs
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- 10 – 90% (non-condensing)
