SRX3400BASE-AC Technical Specifications

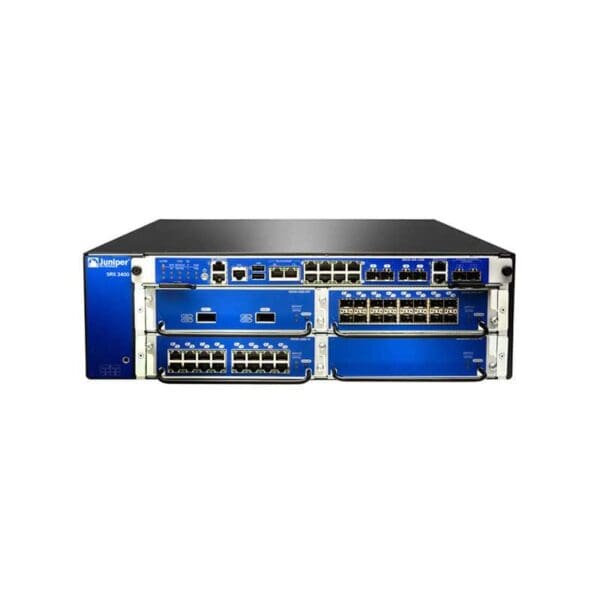

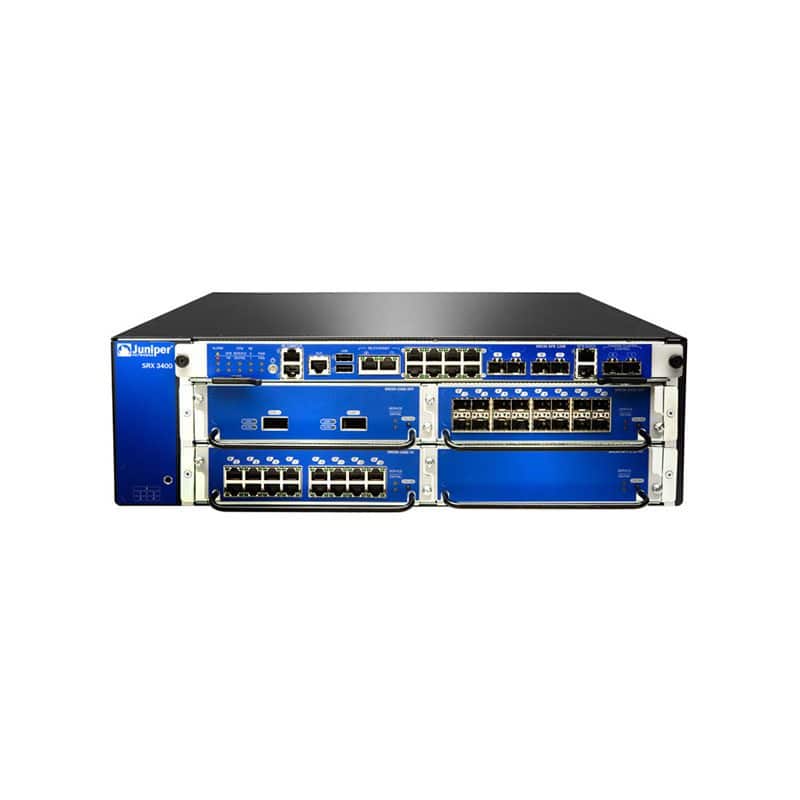

Juniper Networks SRX3400 Services Gateway Base security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX3400 Services Gateway Base
Packaged Quantity :1
Optical Storage
Type :None
Performance
Performance :IPS throughput: 6 Gbps, Firewall throughput (IMIX): 8 Gbps, Firewall throughput: 20 Gbps
Capacity
Capacity :VPN tunnel interfaces: 5000, Security policies: 40000, OSPF routes: 1000000, Concurrent sessions: 1000000
Networking
Type :Security appliance
Form Factor :External
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Gigabit Ethernet, Ethernet
Routing Protocol :ECMP, OSPF, BGP, RIP-1, RIP-2
Remote Management Protocol :SNMP 3, SNMP 2, SSH, HTTP, HTTPS
Data Transfer Rate :1 GBps
Features :Weighted Random Early Detection (WRED), IPSec passthrough, DoS attack prevention, DHCP support, Quality of Service (QoS), DDos attack prevention
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x, 4 (total) / 4 (free) x expansion slot
Interface Provided
Interfaces :8 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Installed Qty :2
Nominal Voltage :DC -40 -60 V
Miscellaneous
Encryption Algorithm :SHA-1, AES, DES, MD5, PKI, Triple DES, IKE
Authentication Method :RADIUS, Active Directory, LDAP
Dimensions & Weight
Width :17.5 inch
Depth :25.5 inch
Height :5.2 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90%
