SRX320-SYS-JE-P Technical Specifications

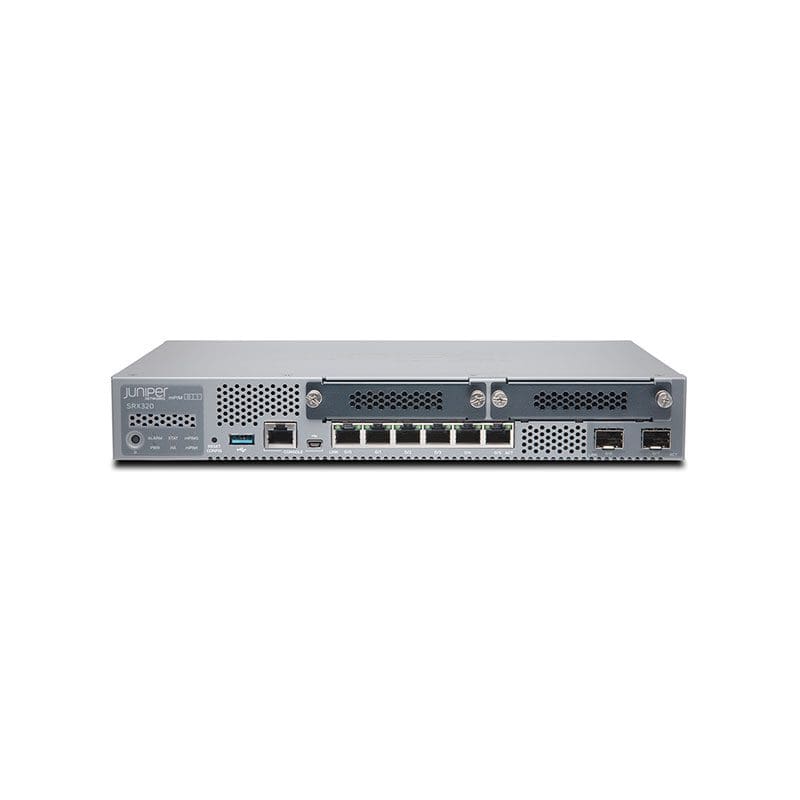

Juniper Networks SRX320 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX320 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :Firewall throughput (1518-byte packet size): 1 Gbps, Firewall throughput (64-byte packet size): 200 Kpps, Firewall throughput (IMIX): 500 Mbps, VPN throughput (1400-byte packet size): 300 Mbps, VPN throughput (IPSec): 100 Mbps, Connection rate: 5000 connections per second, IPS throughput: 200 Mbps
Capacity
Capacity :Concurrent sessions: 64000, IPSec VPN tunnels: 256, Maximum number of remote users: 50, IPv6 routing table entries: 256000, Virtual interfaces (VLANs): 1000, Virtual routers: 32, Security zones: 16, Maximum number of NAT rules: 1000, GRE tunnels: 256, Security policies: 1000, IPv4 routing table entries: 256000, MAC addresses: 15000
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :HDLC, Fast Ethernet, Gigabit Ethernet, Frame Relay, MLPPP, MLFR, PPP, Ethernet
Routing Protocol :BGP, IS-IS, OSPFv3, PIM-DM, MSDP, ECMP, IGMPv2, RIP-1, PIM-SM, PIM-SSM, MPLS, OSPF, Static IP routing, IGMP, VRRP, RIP-2, DVMRP
Network / Transport Protocol :DDNS, RSVP, DNS, DHCP, IPSec, PPPoE
Remote Management Protocol :CLI, SNMP, HTTP, Telnet, SSH
Power Over Ethernet (PoE) :PoE+
Features :Virtual Private LAN Service (VPLS), VPN support, LLDP support, Quality of Service (QoS), URL filtering, DHCP server, Spanning Tree Protocol (STP) support, DHCP client, J-Flow, Anti-spam protection, Rapid Spanning Tree Protocol (RSTP) support, NAT support, Generic Routing Encapsulation (GRE), Dead Peer Detection (DPD), Front to back airflow, Inspect SSL Encrypted Traffic, DDos attack prevention, Anti-virus protection, DiffServ Code Point (DSCP) support, IPv6 support, Intrusion Prevention System (IPS), Firewall protection, IPv4 support, IPSec NAT-Traversal (NAT-T), MACsec support, DHCP relay, Weighted Random Early Detection (WRED), PAT support, Label Distribution Protocol (LDP)
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x USB 3.0 – Type A, 2 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T (PoE+) – RJ-45, 1 x console – RJ-45, 1 x mini-USB
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :External power adapter
Power Consumption Operational :27 watt
Miscellaneous
Color Category :Gray
Encryption Algorithm :SSL, IKEv2, 256-bit AES, PKI, 256-bit SHA, IKE, MD5, SHA-1, Triple DES, DES
Authentication Method :X.509 certificates, Secure Shell (SSH)
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :11.8 inch
Depth :7.5 inch
Height :1.7 inch
Weight :3.33 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
