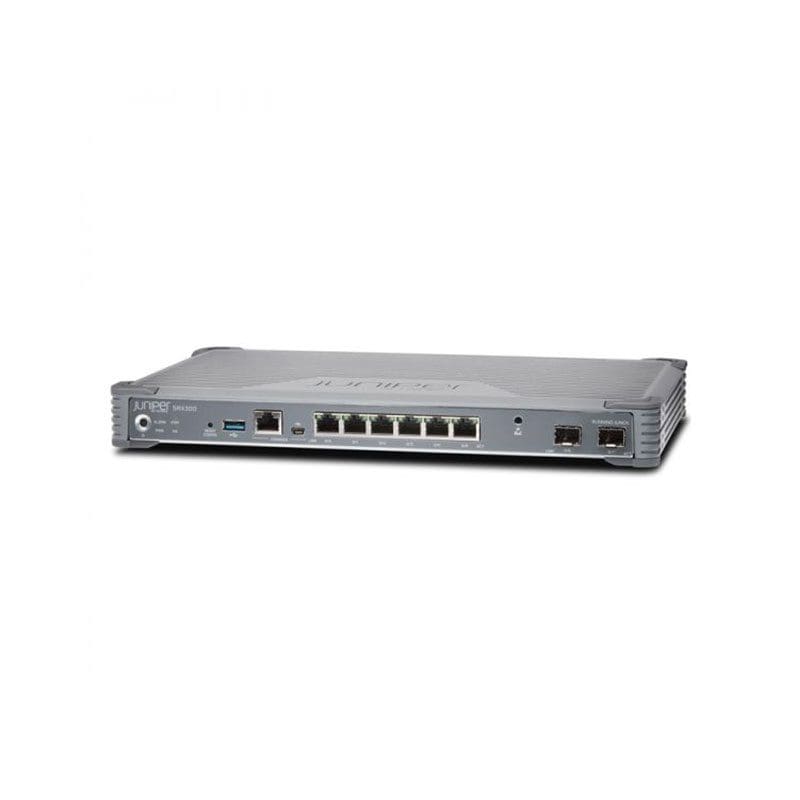

SRX300-TAA Technical Specifications
Juniper SRX300 Services Gateway TAA Compliant
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX300 Services Gateway
Packaged Quantity :1
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :VPN throughput (IPSec): 100 Mbps, IPS throughput: 200 Mbps, Connection rate: 5000 connections per second, Firewall throughput (1518-byte packet size): 1.5 Gbps, VPN throughput (1400-byte packet size): 300 Mbps, Firewall throughput (64-byte packet size): 300 Kpps, Firewall throughput (IMIX): 800 Mbps
Capacity
Capacity :Concurrent sessions: 64000, Security policies: 1000, IPSec VPN tunnels: 256, IPv6 routing table entries: 256000, Virtual routers: 32, Security zones: 16, IPv4 routing table entries: 256000, GRE tunnels: 256, Maximum number of NAT rules: 1000, MAC addresses: 15000
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Fast Ethernet, Ethernet
Routing Protocol :VRRP, RIP-2, RSVP, IGMP, PIM-DM, DVMRP, BGP, Static IP routing, GRE, RIP-1, Bidirectional Forwarding Detection (BFD), Two-Way Active Measurement Protocol (TWAMP), MSDP, PIM-SSM, IGMPv2, ECMP, OSPFv3, OSPF, MPLS, Policy-based routing (PBR), PIM-SM, IS-IS
Switching Protocol :Frame Relay
Network / Transport Protocol :DDNS, RSVP, PPPoE, IPSec, DNS, DHCP
Remote Management Protocol :HTTP, Telnet, CLI, SSH, SNMP
Features :802.1x authentication, DiffServ Code Point (DSCP) support, PAT support, Multiple VLAN Registration Protocol (MVRP), Integrated Routing and Bridging (IRB), NAT support, LLDP support, Application Visibility and Control (AVC), Fanless, IPv4 support, Spanning Tree Protocol (STP) support, DDos attack prevention, Weighted Random Early Detection (WRED), Link Aggregation Control Protocol (LACP), Anti-spam protection, Label Distribution Protocol (LDP), DNS proxy, Rapid Spanning Tree Protocol (RSTP) support, Virtual Private LAN Service (VPLS), LLDP-MED, URL filtering, IPSec NAT-Traversal (NAT-T), DHCP relay, IPv6 support, J-Flow, Dead Peer Detection (DPD), DHCP client, Multiple Spanning Tree Protocol (MSTP) support, Intrusion Prevention System (IPS), DHCP server, Anti-virus protection
Compliant Standards :IEEE 802.1x, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3ah, X.509
IP Telephony
VoIP Protocols :SDP
Interface Provided
Interfaces :2 x 1000Base-X – SFP (mini-GBIC), 1 x mini-USB, 6 x 1000Base-T – RJ-45, 1 x console – RJ-45, 1 x USB 3.0 – Type A
OS Provided
Type :JUNOS
Power Device
Type :External power adapter
Power Consumption Operational :24.9 watt
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Encryption Algorithm :PKI, MD5, SSL, Triple DES, IKE, 128-bit SHA, 256-bit SHA, DES, AES-GCM, IKEv2, 256-bit AES, SHA-1
MTBF :44.5 years
Compliant Standards :FCC Class A certified, FIPS 140-2, RoHS2
Dimensions & Weight
Width :12.6 inch
Depth :7.5 inch
Height :1.4 inch
Weight :4.37 lbs
Environmental Parameters
Min Operating Temperature :-4 degree Fahrenheit
Max Operating Temperature :140 degree Fahrenheit
