SRX300-SYS-JE Technical Specifications

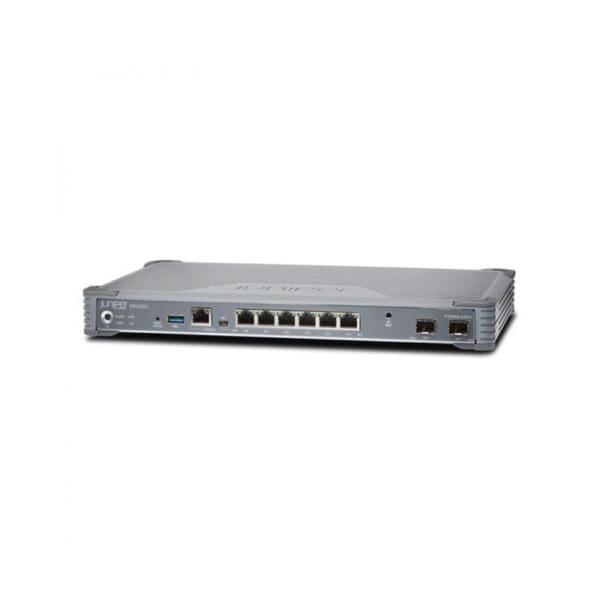

Juniper Networks SRX300 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX300 Services Gateway
Packaged Quantity :1
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :VPN throughput (1400-byte packet size): 250 Mbps, Firewall throughput (1518-byte packet size): 1 Gbps, Firewall throughput (IMIX): 500 Mbps, VPN throughput (IPSec): 80 Mbps, Firewall throughput (64-byte packet size): 200 Kpps, Connection rate: 5000 connections per second, IPS throughput: 100 Mbps
Capacity
Capacity :Maximum number of NAT rules: 1000, MAC addresses: 15000, IPv4 routing table entries: 256000, Concurrent sessions: 64000, GRE tunnels: 256, Security zones: 16, IPv6 routing table entries: 256000, Virtual routers: 32, IPSec VPN tunnels: 256, Security policies: 1000, Virtual interfaces (VLANs): 16, Maximum number of users: 50
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, MLPPP, Fast Ethernet, MLFR, Frame Relay, Ethernet, HDLC, PPP
Routing Protocol :OSPFv3, DVMRP, MPLS, PIM-DM, PIM-SSM, IGMP, Static IP routing, RIP-1, RIP-2, IGMPv2, VRRP, PIM-SM, BGP, MSDP, ECMP, IS-IS, OSPF
Network / Transport Protocol :PPPoE, DNS, RSVP, IPSec, DHCP, DDNS
Remote Management Protocol :Telnet, SSH, SNMP, HTTP, CLI
Features :DHCP server, Intrusion Prevention System (IPS), J-Flow, DHCP relay, IPv6 support, Anti-virus protection, NAT support, IPv4 support, Label Distribution Protocol (LDP), DDos attack prevention, Quality of Service (QoS), URL filtering, Firewall protection, Virtual Private LAN Service (VPLS), DiffServ Code Point (DSCP) support, LLDP support, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Anti-spam protection, Inspect SSL Encrypted Traffic, DHCP client, VPN support, Dead Peer Detection (DPD), Fanless, MACsec support, Weighted Random Early Detection (WRED), IPSec NAT-Traversal (NAT-T), Generic Routing Encapsulation (GRE), PAT support
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Interface Provided
Interfaces :1 x mini-USB, 1 x USB 2.0 – Type A, 2 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T – RJ-45, 1 x console – RJ-45
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :External power adapter
Power Consumption Operational :15.4 watt
Miscellaneous
Color Category :Gray
Encryption Algorithm :DES, MD5, 256-bit SHA, 256-bit AES, Triple DES, SSL, IKEv2, SHA-1, PKI, IKE
Authentication Method :Secure Shell (SSH), X.509 certificates
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :12.6 inch
Depth :7.5 inch
Height :1.4 inch
Weight :4.37 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
