SRX300-SYS-JB Technical Specifications

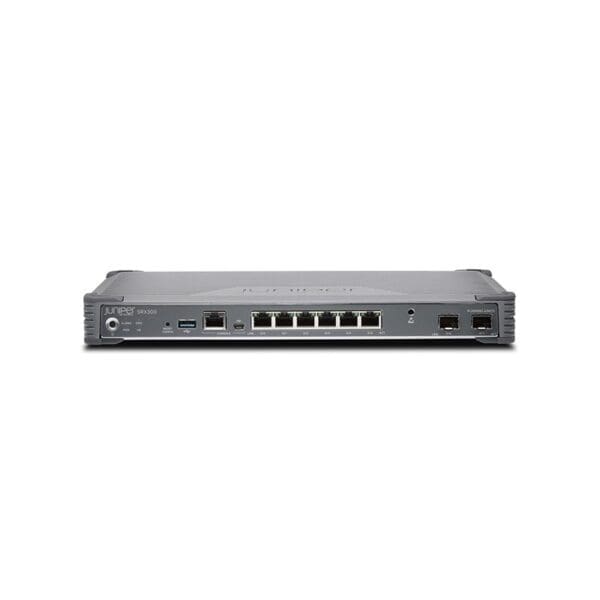

Juniper Networks SRX300 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX300 Services Gateway
Packaged Quantity :1
RAM
Installed Size :4 GB
Flash Memory
Installed Size :8 GB, 8 GB
Performance
Performance :Firewall throughput (IMIX): 500 Mbps, Firewall throughput (1518-byte packet size): 1 Gbps, Connection rate: 5000 connections per second, VPN throughput (1400-byte packet size): 250 Mbps, VPN throughput (IPSec): 80 Mbps, IPS throughput: 100 Mbps, Firewall throughput (64-byte packet size): 200 Kpps
Capacity
Capacity :Virtual routers: 32, Concurrent sessions: 64000, Virtual interfaces (VLANs): 16, IPSec VPN tunnels: 256, IPv4 routing table entries: 256000, Maximum number of NAT rules: 1000, Security policies: 1000, IPv6 routing table entries: 256000, MAC addresses: 15000, Security zones: 16, Maximum number of users: 50, GRE tunnels: 256
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
