SRX1500-SYS-JE-DC Technical Specifications

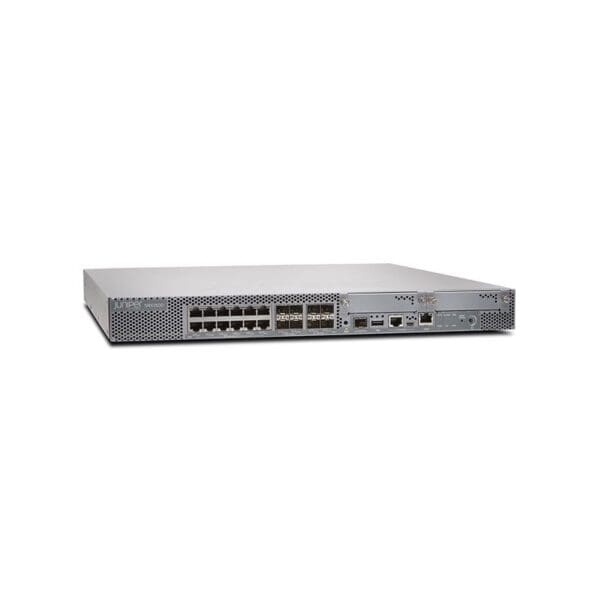

Juniper Networks SRX1500 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Form Factor (metric) :mSATA
Capacity :16 GB
Hard Drive (2nd)
Type :SSD
Capacity :120 GB
Performance
Performance :Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second, Firewall throughput (1518-byte packet size): 10 Gbps, Firewall throughput (64-byte packet size): 2 Mpps, Firewall throughput (IMIX): 5 Gbps, VPN throughput (IPSec): 1 Gbps
Capacity
Capacity :Concurrent IPSec sessions: 512000, GRE tunnels: 2000, IPSec VPN tunnels: 2000, IPv4 routing table entries: 2000000, IPv6 routing table entries: 2000000, MAC addresses: 64000, Maximum number of NAT rules: 8000, Security policies: 16000, Security zones: 512, Virtual interfaces (VLANs): 1000, Virtual routers: 512
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :BGP, DVMRP, ECMP, IGMP, IGMPv2, MSDP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, Static IP routing, VRRP
Network / Transport Protocol :DDNS, DHCP, DNS, IPSec, PPPoE
Remote Management Protocol :CLI, HTTP, SNMP, SSH, Telnet
Features :Anti-spam protection, Anti-virus protection, DDos attack prevention, Dead Peer Detection (DPD), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, Firewall protection, Front to back airflow, Generic Routing Encapsulation (GRE), Inspect SSL Encrypted Traffic, Intrusion Prevention System (IPS), IPSec NAT-Traversal (NAT-T), IPv4 support, IPv6 support, J-Flow, LLDP support, NAT support, PAT support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, URL filtering, VPN support, Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 1 x management – SFP (mini-GBIC), 1 x mini-USB, 1 x USB 2.0 – Type A, 12 x 1000Base-T – RJ-45, 4 x 1000Base-X – SFP (mini-GBIC), 4 x 10Gb Ethernet – SFP+
OS Provided
Type :JUNOS
Software
Type :Junos Software Enhanced
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :DC -48 V
Power Consumption Operational :150 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
Authentication Method :Active Directory, Secure Shell (SSH), X.509 certificates
MTBF :85,787 Hours
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
