SRX1500-DC Technical Specifications

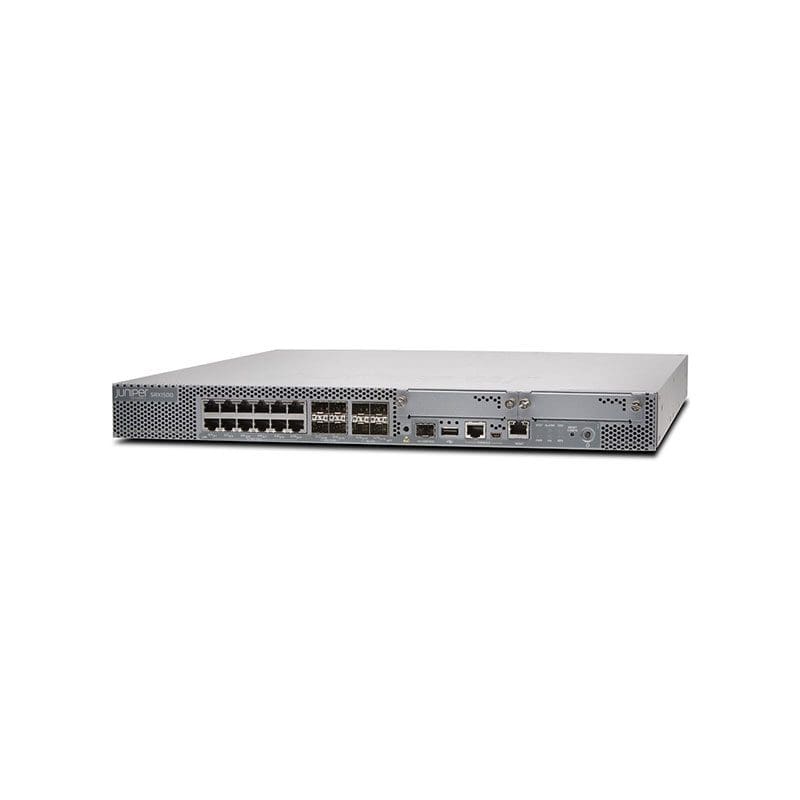

Juniper Networks SRX1500 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Form Factor (metric) :mSATA
Capacity :16 GB
Hard Drive (2nd)
Type :SSD
Capacity :120 GB
Performance
Performance :VPN throughput (IPSec): 1 Gbps, Firewall throughput (1518-byte packet size): 10 Gbps, Firewall throughput (64-byte packet size): 2 Mpps, Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second, Firewall throughput (IMIX): 5 Gbps
Capacity
Capacity :Virtual interfaces (VLANs): 1000, IPSec VPN tunnels: 2000, IPv6 routing table entries: 2000000, MAC addresses: 64000, Security policies: 16000, GRE tunnels: 2000, Concurrent IPSec sessions: 512000, Maximum number of NAT rules: 8000, Security zones: 512, IPv4 routing table entries: 2000000, Virtual routers: 512
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
Routing Protocol :IGMPv2, MSDP, OSPF, BGP, ECMP, Static IP routing, IGMP, DVMRP, RIP-2, PIM-SSM, PIM-DM, OSPFv3, PIM-SM, VRRP, RIP-1
Network / Transport Protocol :DNS, DDNS, PPPoE, DHCP, IPSec
Remote Management Protocol :CLI, HTTP, SSH, SNMP, Telnet
Features :URL filtering, Intrusion Prevention System (IPS), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP relay, NAT support, DiffServ Code Point (DSCP) support, J-Flow, Anti-virus protection, Generic Routing Encapsulation (GRE), DDos attack prevention, Anti-spam protection, PAT support, Dead Peer Detection (DPD), IPv6 support, Weighted Random Early Detection (WRED), IPv4 support, Firewall protection, LLDP support, Inspect SSL Encrypted Traffic, Front to back airflow, DHCP server, VPN support, Quality of Service (QoS), DHCP client, IPSec NAT-Traversal (NAT-T)
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :12 x 1000Base-T – RJ-45, 1 x mini-USB, 4 x 1000Base-X – SFP (mini-GBIC), 4 x 10Gb Ethernet – SFP+, 1 x management – SFP (mini-GBIC), 1 x USB 2.0 – Type A, 1 x console – RJ-45, 1 x 1000Base-T (management) – RJ-45
OS Provided
Type :JUNOS
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :DC -40 -72 V
Power Consumption Operational :150 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :SSL, PKI, 256-bit AES, IKE, DES, MD5, 256-bit SHA, IKEv2, SHA-1, Triple DES
Authentication Method :Secure Shell (SSH), Active Directory, X.509 certificates
MTBF :85,787 Hours
Compliant Standards :RoHS2, FCC Class A certified
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
