SRX1400BASE-XGE-AC Technical Specifications

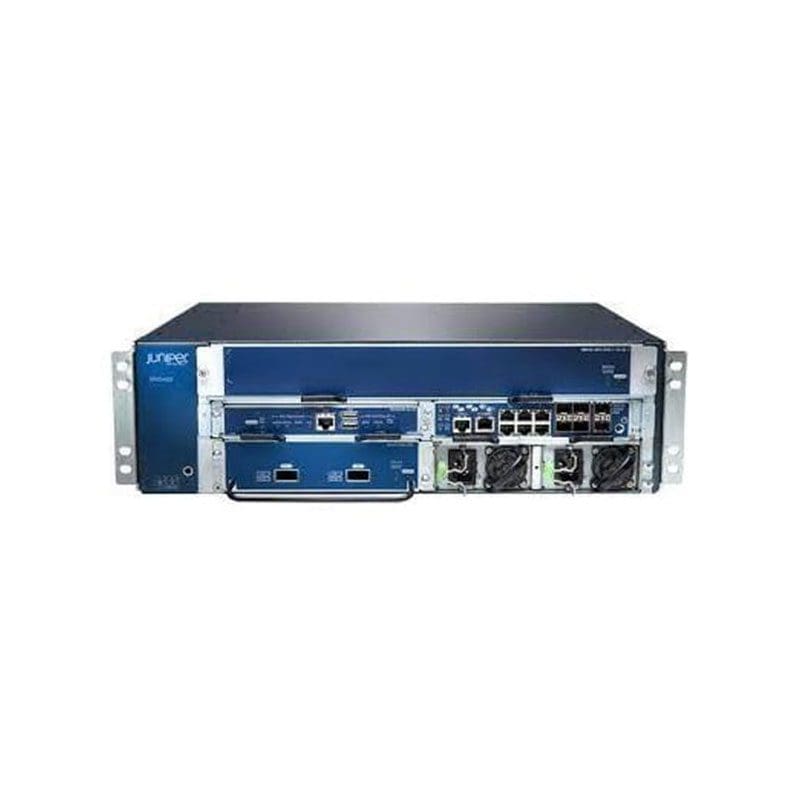

Juniper Networks SRX1400 Services Gateway security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :SRX1400 Services Gateway
Packaged Quantity :1
Optical Storage
Type :None
Performance
Performance :IPS throughput: 2 Gbps
Capacity
Capacity :Concurrent sessions: 500000, Security policies: 40000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Features :MPLS VPN, Intrusion Prevention System (IPS), Power over Ethernet (PoE), DoS attack prevention, Content filtering, Firewall protection, DDos attack prevention, IP address filtering, Quality of Service (QoS), Jumbo Frames support, DHCP support
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x expansion slot, 3 (total) / 3 (free) x
Interface Provided
Interfaces :6 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :3
Encryption Algorithm :DH, Triple DES, 256-bit AES, PKI, IKE, SHA-1, DES, MD5
Authentication Method :SecurID, RADIUS, LDAP, XAUTH (RADIUS, LDAP, Active Directory)
Compliant Standards :ICES Class B, UL 60950-1, VCCI Class B ITE, FCC Class B certified, DOC, EN55022 Class B, CS-03, CSA, CTR 21, EN 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :13.8 inch
Height :5.2 inch
Weight :29.32 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
