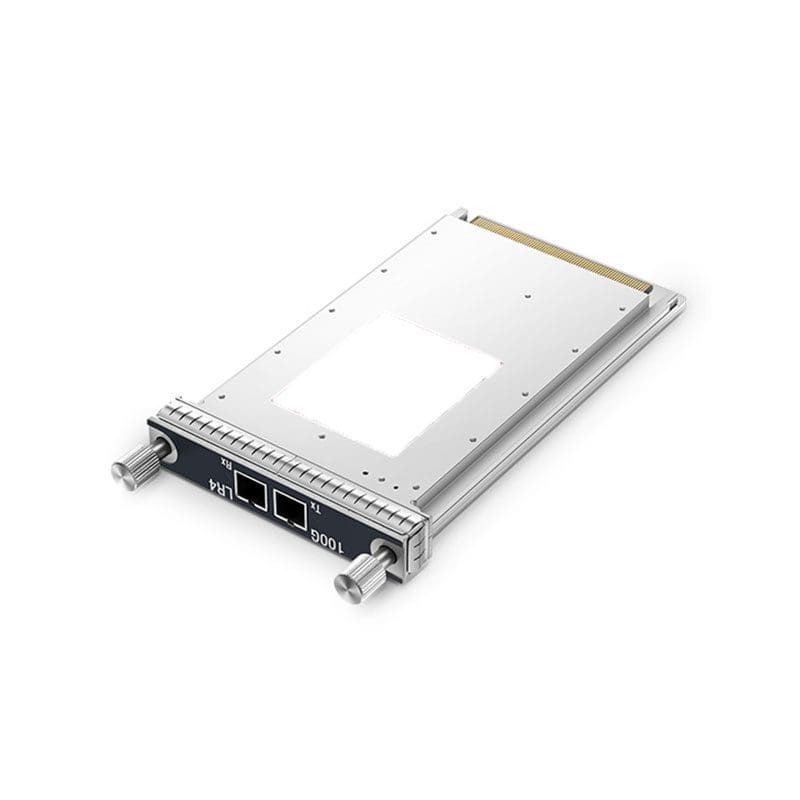

SRX-CFP-100G-LR4 Technical Specifications
Juniper Networks CFP Transceiver Module 100 Gigabit Ethernet
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :CFP Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 100GBase-LR4
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Optical Wave Length :1310 nm
Max Transfer Distance :6.2
Connectors (for SD)
Left Connector Type :SC single-mode
Interface Provided
Interfaces :1 x Ethernet 100GBase-LR4 – SC single-mode female x 2
Compatibility
Compatible With :Juniper Networks MX-series MX2010, MX2020, MX240, MX480, MX960 ¦ Juniper Networks PTX Series PTX5000 ¦ Juniper Networks T-series T1600, T4000
Standard: 100GBASE-LR4
Transmitter wavelengths (range): 1310 nm
Cable type: SMF
Distance: 10 km
Maximum Power consumption (W): 16 W
Storage temperature: –40° C to 85° C
