SRT8KXLT Technical Specifications

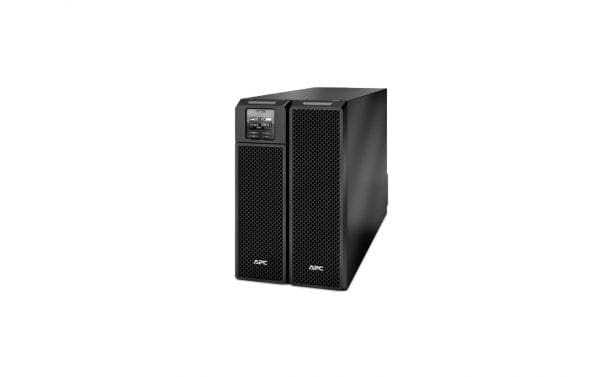

APC Smart-UPS SRT 8000VA 208V
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :8000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :8000 watt
Power Capacity (VA) :8000 volt ampere per kilogram 8000VA
Voltage Required :AC 230 volt
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire 5-wire (3PH + N + G), Hardwire 3-wire (1PH + N + G)
Output Connector Type :Power NEMA L6-20, Hardwire 3-wire (2PH + G), Power NEMA L6-30
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (2PH + G), 2 x power NEMA L6-30, 4 x power NEMA L6-20
Battery
Run Time (Up To) :5.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :14.8 min at half load, 5.3 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :6
Compliant Standards :VDE, EN 50091-1, EN 50091-2, C-Tick, RoHS, REACH, IEC 60950, IP20, EN 62040-2, EAC
Dimensions & Weight
Width :10.4 inch
Depth :28.1 inch
Height :17 inch
Weight :246.52 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :100 inch
Shipping Height :18.1 inch
Shipping Weight :279.59 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
