SRT8KRMXLT-5KTF Technical Specifications

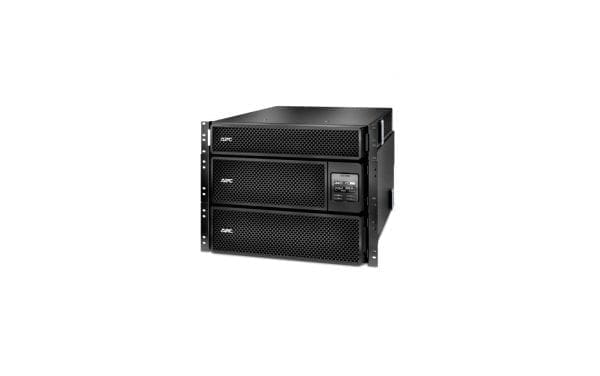

APC Smart-UPS SRT 8kVA RM with 208V to 120V 2U Step-Down Transformer
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :8000VA RM
Bundled with :208V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :8000 watt
Power Capacity (VA) :8000 volt ampere per kilogram 8000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (1PH + N + G)
Output Connector Type :Hardwire 3-wire (2PH + G), Power NEMA L6-20, Power NEMA L6-30, Power NEMA 5-20R
Output Connector Qty :18
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (2PH + G), 1 x power NEMA L6-30, 4 x power NEMA L6-20, 12 x power NEMA 5-20R
Battery
Run Time (Up To) :5 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Leak-proof, Sealed, Maintenance free
Run Time Details
Run Time (Up To) :14 min at half load, 5 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :6
Rack Size :19″
Rack Size (metric) :48.3 cm
Compliant Standards :FCC Part 15 A, UL 1778, IP20, CSA C22.2 No. 107.3, REACH, NOM, RoHS
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17.5 inch
Depth :28.1 inch
Height :13.9 inch
Weight :340.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.5 inch
Shipping Depth :39.4 inch
Shipping Height :28.1 inch
Shipping Weight :395.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
