SRT6KXLTUS Technical Specifications

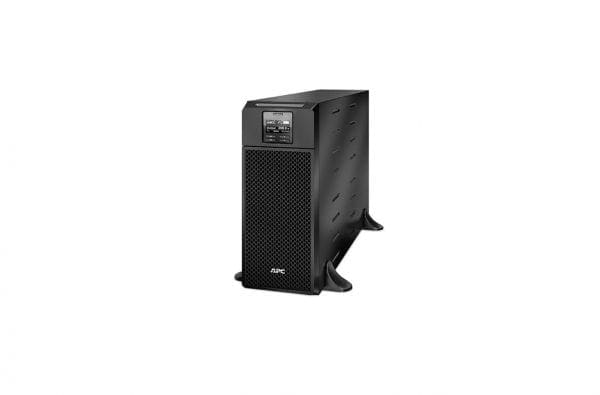

APC Smart-UPS SRT 6000VA UPS 6000 Watt 6000 VA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :6000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Serial, USB, Ethernet 10/100
Remote Management Protocol :SNMP, HTTP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :6000 watt
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 160 – 275 V
Input Voltage Range (Adjustable) :AC 100 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Input Connector Qty :1
Output Connector Type :2 x power NEMA L6-20R, 3 x power NEMA L6-30R, Hardwire 3-wire (2PH + G)
Output Connector Qty :6
Surge Suppression :Yes
Surge Energy Rating :480 joules
Circuit Protection :Circuit breaker
Efficiency :92.7% at 25% Load, 94% at 75% Load, 94.1% at 50% Load, 93.7% at 100% Load
Power Device Features :Resettable fuse, Hot-swappable batteries, Green Function, Firmware upgradable, Intelligent Battery Management, Temperature-compensated battery charging, LCD display, Audible alarm, Double conversion, Automatic inverter bypass
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (2PH + G), 3 x power NEMA L6-30R, 2 x power NEMA L6-20R
Battery
Run Time (Up To) :2.3 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :8.3 min at half load, 2.3 min at full load
UPS
Expandable Battery :Expandable
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Temperature sensor, Removable support feet
TAA Compliant :Yes
Compliant Standards :REACH SvHC, RoHS, IP20, FCC Part 15 A, CSA C22.2 No.107.3-05, UL 1778, NOM
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :6.9 inch
Depth :28.3 inch
Height :17 inch
Weight :134.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :14.6 inch
Shipping Weight :142 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
