SRT6KXLT-IEC Technical Specifications

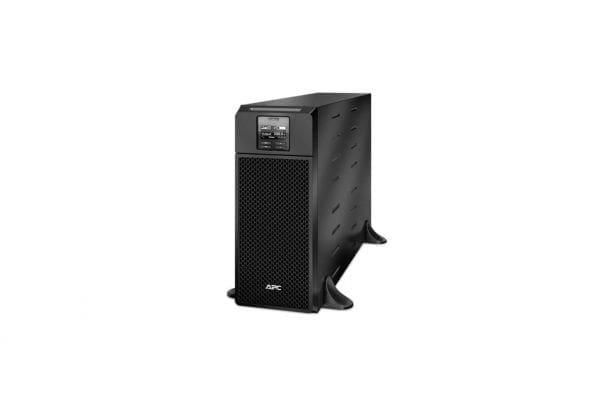

APC Smart-UPS SRT 6000VA 208V IEC
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x RS-232, 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :6000 watt
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Input Voltage Range (Adjustable) :AC 100 – 275 V
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Built-in bypass switch, LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :4 x power IEC 60320 C19, 6 x power IEC 60320 C13
Battery
Run Time (Up To) :2.3 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :UL 1778, REACH, FCC Part 15 A, RoHS, IP20
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :6.9 inch
Depth :28.3 inch
Height :17 inch
Weight :2.11 ounce
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :14.6 inch
Shipping Weight :147.4 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
