SRT6KRMXLIM Technical Specifications

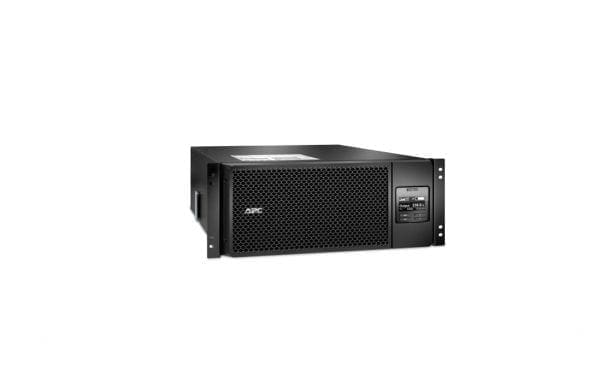

APC Smart-UPS SRT 6000VA RM 230V Marine
Manufacturer :APC
Brand :APC
Product Line :APC Marine Smart-UPS On-Line
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet, Serial
Expansion Slots
Expansion Slots :1 SmartSlot
Interface Provided
Interfaces :1 x sensor – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type B, 1 x EPO (emergency power off)
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 220/230/240 volt
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
Power Provided :6000 watt
Power Capacity (VA) :6000 volt ampere per kilogram
Voltage Required :AC 220/230/240 volt
Input Voltage Range :AC 100 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (1PH + N + G)
Input Connector Qty :1
Output Connector Type :6 x power IEC 60320 C13, 4 x power IEC 60320 C19
Output Connector Qty :10
Power Device Features :LED display, Emergency power off
Power Output Connectors Details
Power Output Connectors Details :6 x power IEC 60320 C13, 4 x power IEC 60320 C19
Battery
Run Time (Up To) :3 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :9 min at half load, 3 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color Category :Black
Height (Rack Units) :4
Compliant Standards :RCM, EAC, VFI-SS-111, IEC 62040-1, IEC 62430, VDE, IEC 62040-3, IEC 60945, KCC, IACS-E10, IEC 62040-4, IEC 62040-2
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :6.9 inch
Weight :132.28 lbs
