SRT2200RMXLA-NC Technical Specifications

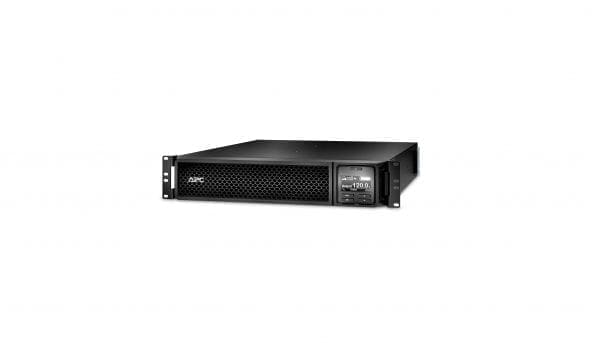

APC Smart-UPS SRT 2200VA RM UPS 1.8 kW with APC UPS Network Card
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :2200VA RM
Bundled with :APC UPS Network Management Card
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (Fast Ethernet) – RJ-45, 1 x management (USB), 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Serial cable – external, USB cable – external, Power cable 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1.8 kilograms per millimetere
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA 5-20P
Input Connector Qty :3
Output Connector Type :Power NEMA 5-20R, Power NEMA L5-20
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :340 joules
Efficiency :87.7% at 25% Load, 91.7% at 75% Load, 91.7% at 100% Load, 91.1% at 50% Load
Power Device Features :LCD display, Eco-Mode, Internal bypass, Emergency power off, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L5-20, 6 x power NEMA 5-20R
Battery
Run Time (Up To) :3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Leak-proof, Sealed
Run Time Details
Run Time (Up To) :3 min at full load, 10 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :EAC, RCM, IP20, VDE, IEC 62040-2, EN 62040-1, IEC 62040-1, RoHS, EN 62040-2
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :23 inch
Height :3.3 inch
Weight :55 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :31.9 inch
Shipping Height :9.7 inch
Shipping Weight :75 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
Compatibility
Compatible With :P/N: SUA2200R2X180
